СКУ: RXG12P7PV

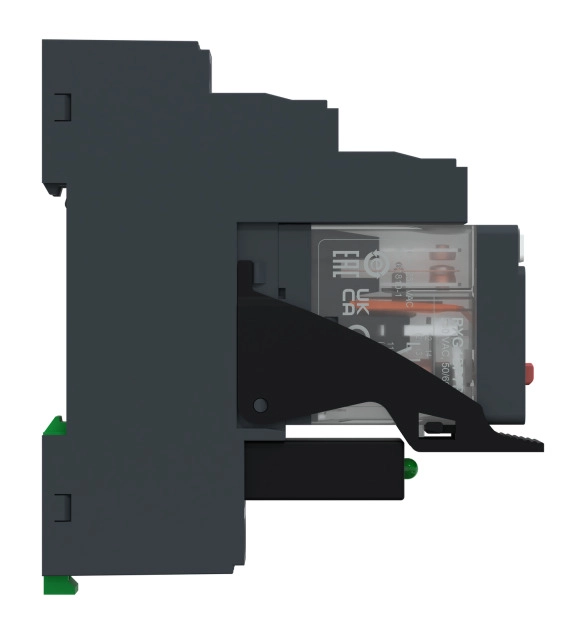

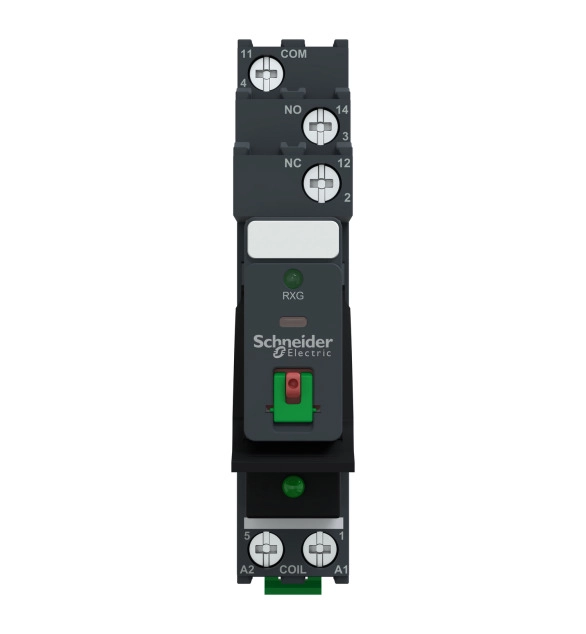

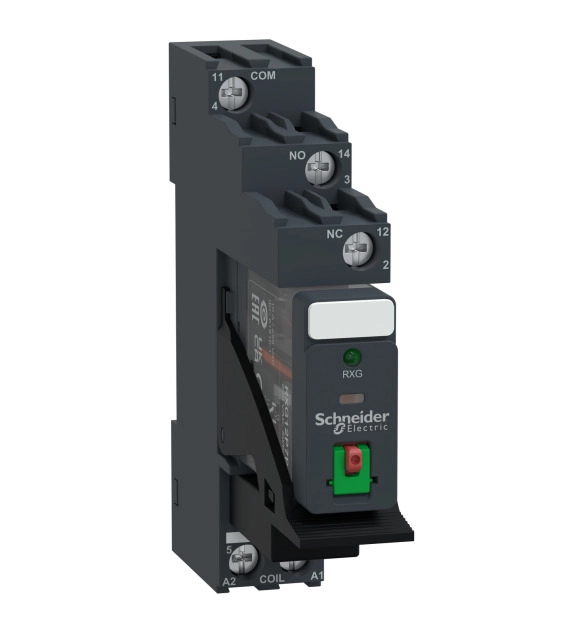

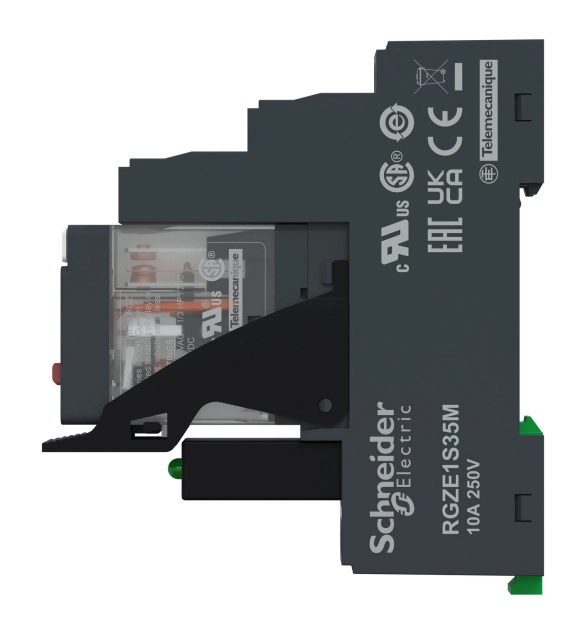

Интерфейс реле с основа, Harmony електромеханични релета, предварително сглобено, 10A, 1CO, с LED, заключващ се тест бутон, 230V AC

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Depth
    72
  • Voltage type for actuating
    EV000460
  • Number of contacts as change-over contact
    1
  • With LED indication
    TRUE
  • Nominal current
    10
  • With detachable clamps
    TRUE
  • Width
    15
  • Drive, switching attitude
    EV005821
  • Drive, polarization
    EV005820
  • Material of contact insert
    EV000154
  • Material of contact surface
    EV000154
  • Material contact
    EV000154
  • Type of electric connection
    EV000414
  • With forced-guided contacts
    FALSE
  • Type of switch contact
    EV000154
  • Complete with socket
    TRUE
  • Height
    79
  • Number of contacts as normally closed contact
  • Number of contacts as normally open contact
  • Rated control supply voltage Us at AC 50HZ
  • Rated control supply voltage Us at AC 60HZ

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 230Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. This product conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
