СКУ: NSYSBM404012

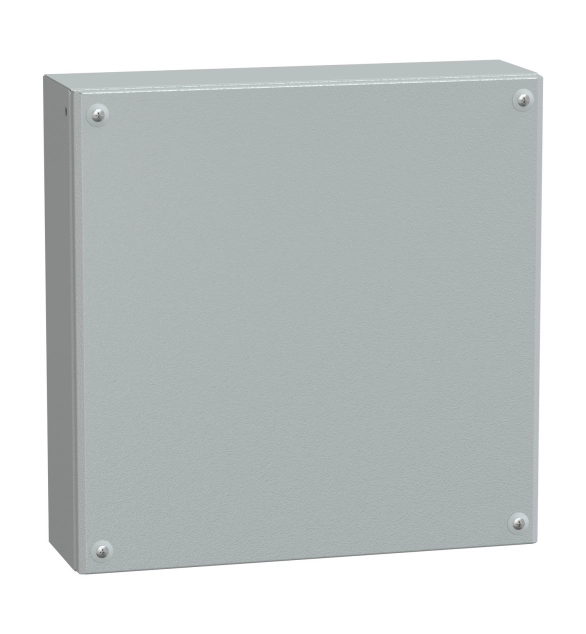

Индустриална метална кутия, с врата H400xW400xD120 IP66 IK10 RAL 7035
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With mounting plate
TRUE
-
Degree of protection (IP)
EV006420
-
Surface finishing
EV008895
-
Material
EV000179
-
Width
600
-
Degree of protection (NEMA)
EV000154
-
With glazed door
FALSE
-
Number of doors
1
-
Depth
600
-
With backside door
FALSE
-
Material quality
EV000154
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Impact strength
EV008784
-
Height
1600
-
Connectable
TRUE
-
Number of locks
1
-
Mounting plate depth-adjustable
TRUE
-
Intermediate mounting
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
-
Max. permissible load of the enclosure according to IEC 62208
-
Max. permissible load of the door(s) according to IEC 62208
-
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
530
PanelSeT SBM steel industrial box is designed for multi-purpose applications and is suitable for use in harsh environments It is certified by LR | DNV-GL | UL | BV and has an IK10 (IEC62262) degree of protection and IP66 (IEC60529) rating This box has a nominal height, width and depth of 400mm, 600mm and 120mm respectively It is made of sheet steel with a grey color (RAL7035) and polyester powder surface finish It consists of 1 cover, 1 body and 6 cover screw The cover is removable for maintenance purposes and is secured by a captive screw PZ2 outside the sealed area The net weight of the enclosure is 9,084kg and it meets the standards of IEC 62208 The ambient air temperature for storage and operation is -35-60°C and -35-80°C respectively Made sheet of stee with polyester powder finish. Protection IP 66, IK10.
