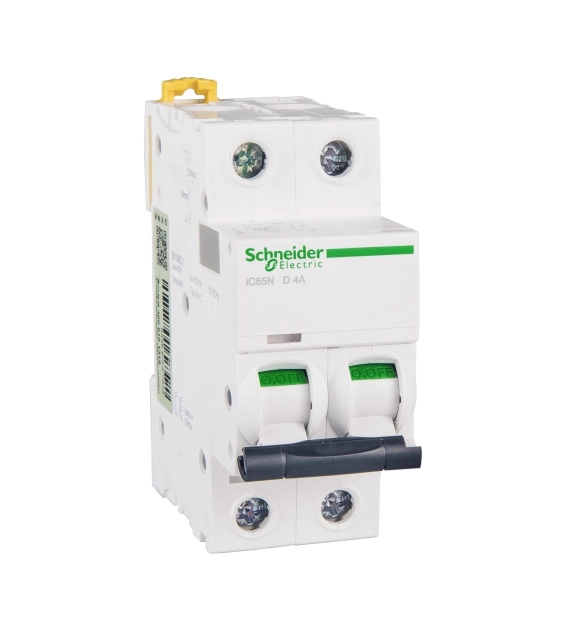

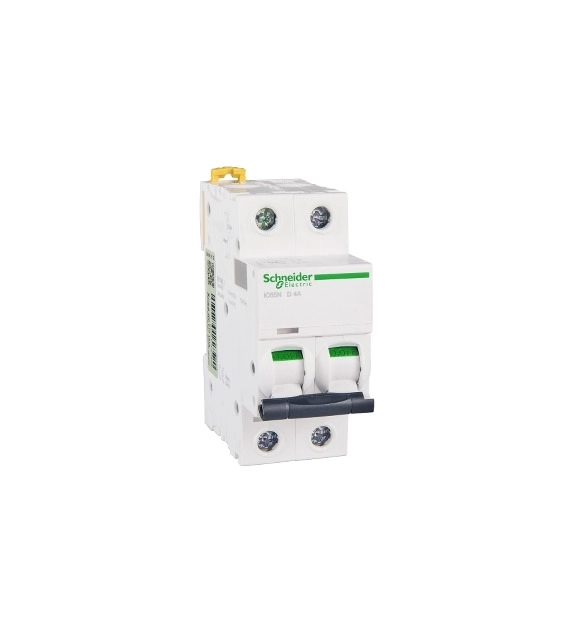

iC65N Прекъсвач, C крива, 4A, 400V, 2P, 6kA, 4 | Spark & Co
  • 3D
  • 3D
|

СКУ: A9F18204

iC65N Прекъсвач, C крива, 4A, 400V, 2P, 6kA, 4

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Concurrently switching neutral conductor
    FALSE
  • Width in number of modular spacings
    1
  • Frequency
    50
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    50
  • Additional equipment possible
    TRUE
  • Voltage type
    EV000509
  • Flush-mounted installation
    FALSE
  • Explosion-proof
    FALSE
  • Over voltage category
    4
  • Connectable conductor cross section multi-wired
    1
  • Pollution degree
    3
  • Number of poles (total)
    1
  • Number of protected poles
    1
  • Release characteristic
    EV000074
  • Rated voltage
    230
  • Rated impulse withstand voltage Uimp
    6
  • Connectable conductor cross section solid-core
    1
  • Rated insulation voltage Ui
    500
  • Current limiting class
    3
  • Rated current
    3
  • Built-in depth
    44.5
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6
  • Ambient temperature during operating
    -35

This Acti9 iSSW is a changeover switch used for the manual control of electric circuits. It is 2 positions switch with 2 changeover contact (2 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 82mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +50°C. The storage temperature is from -40°C to +70°C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.
