СКУ: ZB4BG5
Head SS metal key 455 3pos L/R withdraw
-
Brand
Schneider Electric
-
Hole diameter
22.5
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Colour front ring
EV000206
-
Type of control element
EV000175
-
Switching function latching
FALSE
-
Colour control element
EV000154
-
Degree of protection (NEMA)
EV000154
-
Number of switch positions
3
-
Degree of protection (IP), front side
EV006422
-
Spring-return
TRUE
-
Material front ring
EV000914

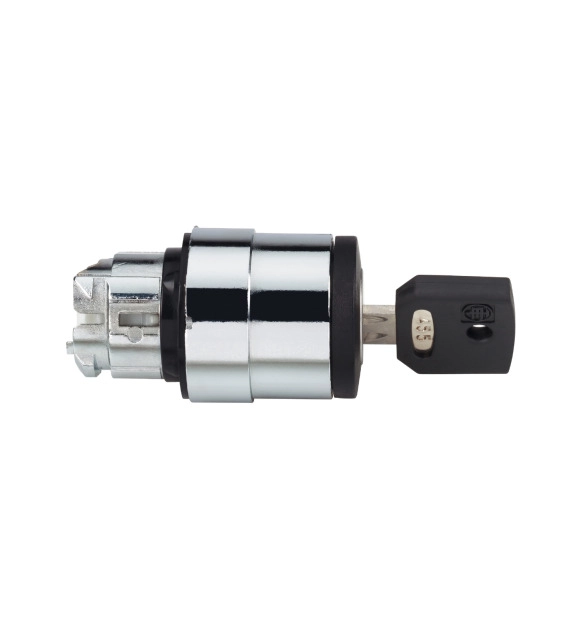

This Harmony XB4, black head with key (key no.455) for key selector switch has 3 positions, operates with stay-put mechanism with key withdrawal on center position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.
