СКУ: XB5AW33G5
Harmony XB5, светещ бутон, пластмаса, равен, зелен, 22 мм, пружинно връщане, 110...120 V AC, 1 NO + 1 NC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Number of contacts as normally closed contact
1
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Colour front ring
EV000206
-
Switching function latching
FALSE
-
Degree of protection (NEMA)
EV000154
-
Number of contacts as change-over contact
-
Degree of protection (IP)
EV006422
-
Number of command positions
1
-
Spring-return
TRUE
-
Type of button
EV000880
-
Colour button
EV000235
-
Suitable for illumination
TRUE
-
Supply voltage lamp
240

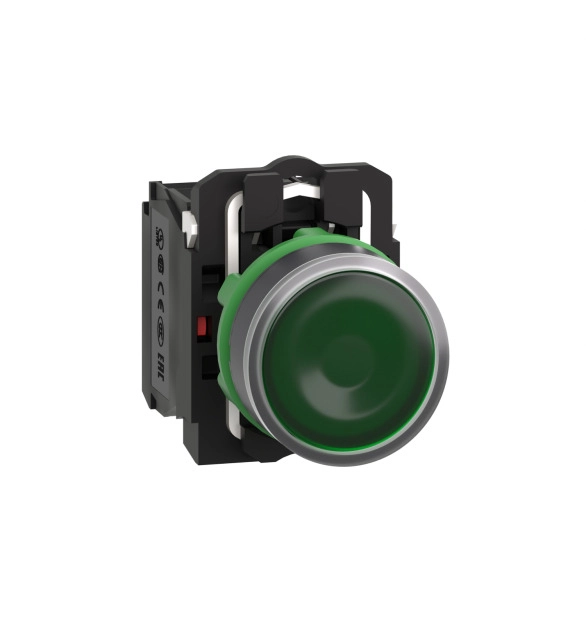

This Harmony XB5, plain lens illuminated modular green push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC and uses screw-clamp terminals. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
