СКУ: SSL1A12JDPV

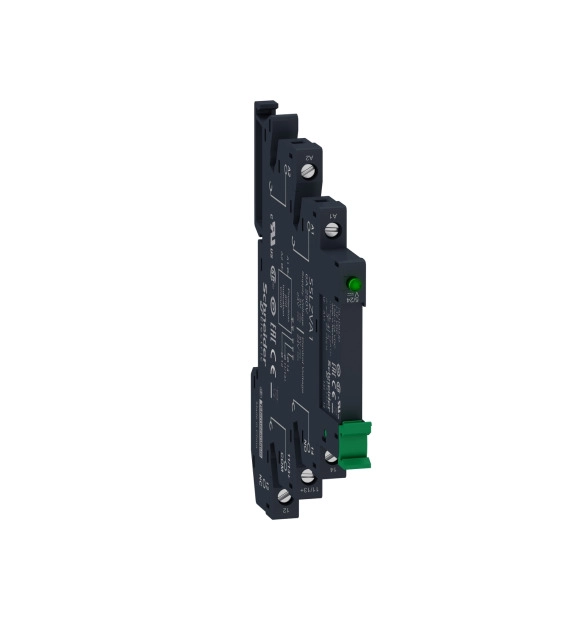

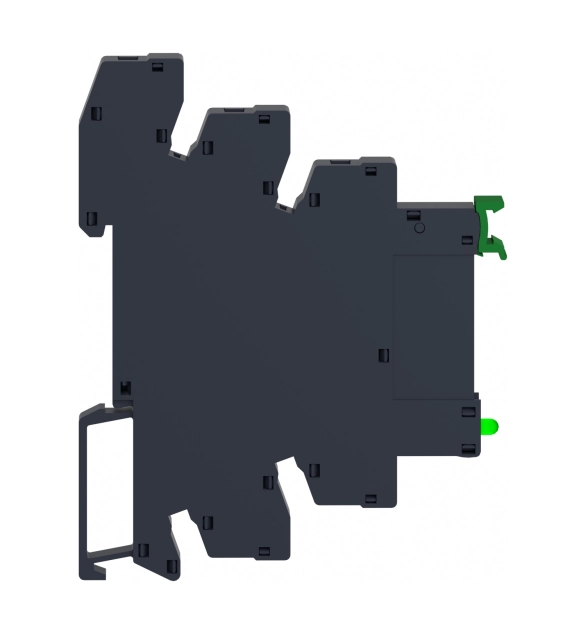

Harmony, Тиристорно реле, асемблирано, 2 A, превключване при нулево напрежение, винтови гнезда, вход 4…12 V DC, изход 24...250 V AC
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Number of phases
1
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Modular version
TRUE
-
Operating voltage
24
-
Rated control supply voltage Us at DC
4
-
Switching at zero-crossing
TRUE
-
Rated operation current Ie at AC-53a
2
-
Rated operation current Ie at AC-51
2
-
Rated operation current Ie at AC-53b
2
-
Rated operation current Ie at AC-1
2
-
Rated operation current Ie at AC-3
2
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 4Vdc to 12Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. This is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
