СКУ: NTSXBA0201H

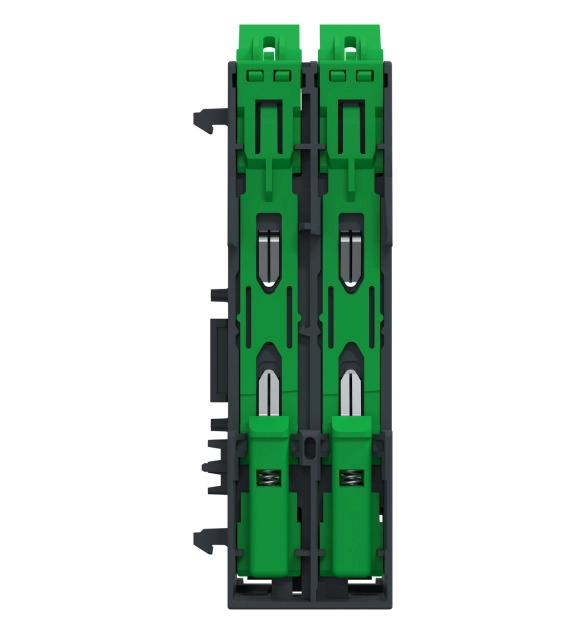

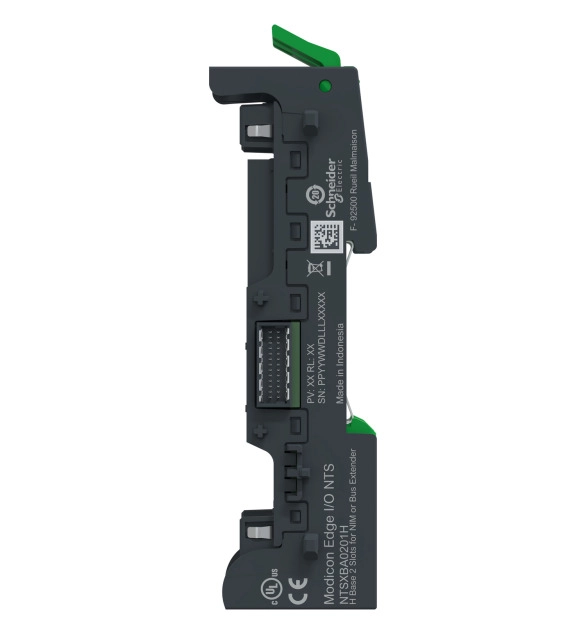

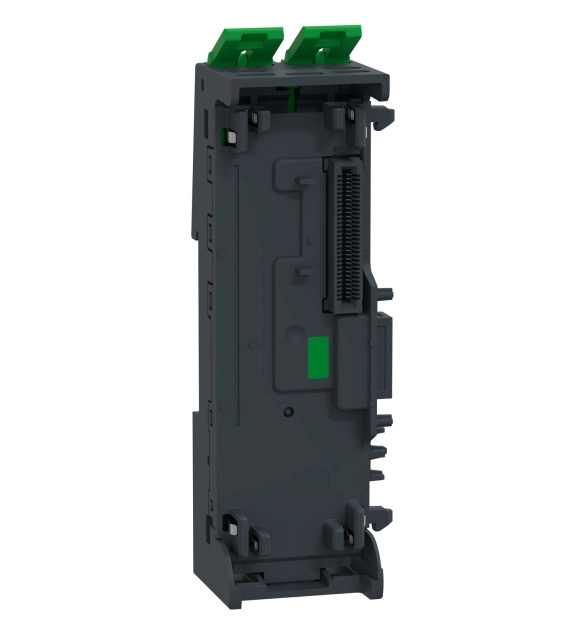

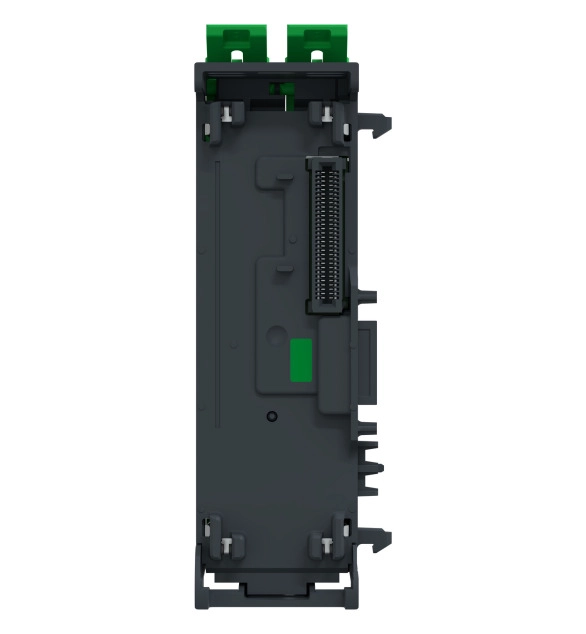

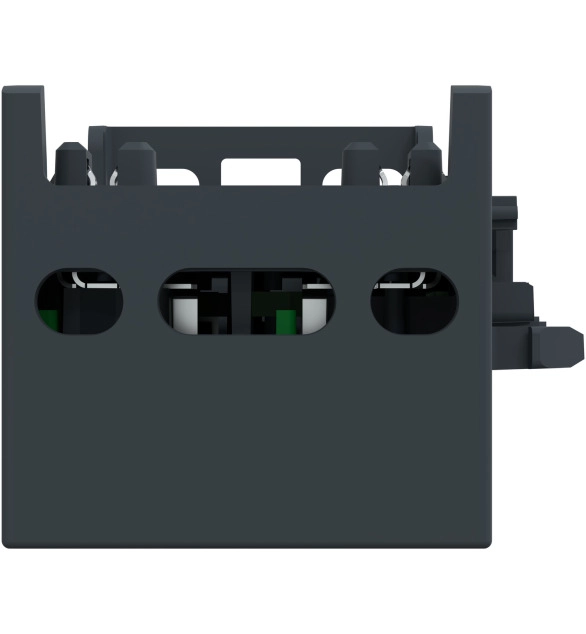

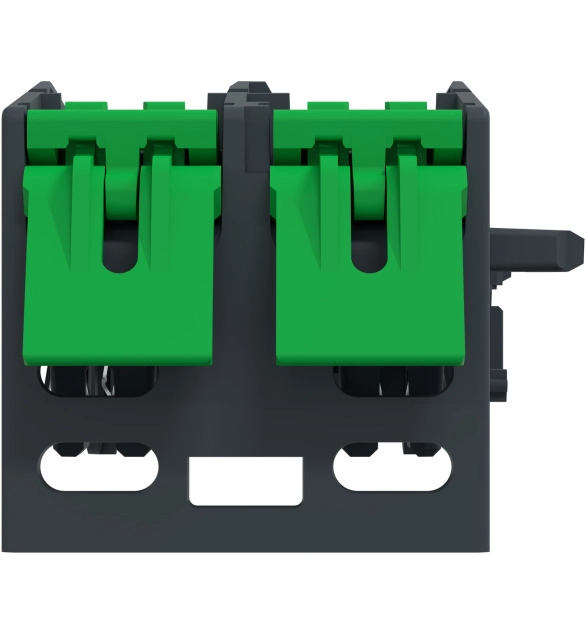

H Base 2 Slots for NIM or Bus Extender
-
Brand
Schneider Electric
-
Spare part
TRUE
-
Accessory
FALSE
-
Type of electrical accessory/spare part
EV000154
This base is a spare part of the Modicon Edge I/O NTS range. This is a replacement base for network interface modules or bus extender modules. It occupies 2 slots on a DIN rail with 30mm wide and can accommodate modules of 100mm high. It ensures the mounting on the Din rail, the transmission of data, and the supply of the module through the Backplane bus. It functions within a temperature range of minus 40 to 70degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 30mm wide, 11mm deep, and it weighs 0.048kg. It supports functional modules requiring 2 slots, such as Network Interface Modules and Bus Extender modules. It is sold in a 1-piece package. It supports DIN rail mount. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
