GOMCCB 400-800 MN AC 415V | Spark & Co
  • 3D
|

СКУ: G40-80UVR415AC

GOMCCB 400-800 MN AC 415V

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000460
  • Suitable for power circuit breaker
    TRUE
  • Suitable for overload relay
    FALSE
  • Suitable for off-load switch
    TRUE
  • Rated control supply voltage Us at AC 50HZ
    380
  • Rated control supply voltage Us at AC 60HZ
    380
  • Suitable for motor safety switch
    TRUE
  • Delayed
    FALSE
  • Type of electric connection
    EV000154
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact
  • Number of contacts as normally open contact

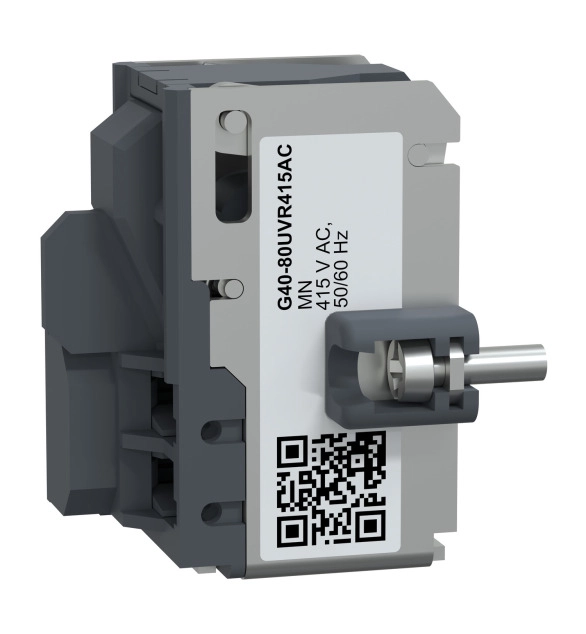

This electrical auxiliary is an undervoltage release (MN) for new GoPact MCCB 400 and 800. GoPact MCCB has a good price-performance ratio for basic applications and delivers a reliable electrical protection for your applications. The rated operational voltage Un is 380/415VAC 50/60Hz. The MN release opens the circuit breaker when its supply voltage drops to a value below 35 % of its rated operational voltage Un. If the supply voltage is between 0.35 and 0.7xUn, opening is possible, but not guaranteed, above 0.7xUn, opening does not take place. Circuit breaker closing is ensured when the voltage supply to the release is above 0.85xUn, below this threshold, closing is not ensured. The maximum response time is 17ms. The power consumption is 3VA at 380/415VAC 50/60Hz. GoPact MCCB 400 and GoPact MCCB 800 are IEC 60947-1 and IEC 60947-2 certified. GoPact MCCB range benefits from Schneider Electric quality assurance.
