СКУ: KNA63DL4
Гъвкав ъглов елемент 63А 80?-180?
-
Brand
Schneider Electric
-
Model
EV000154
-
Colour
EV000202
-
Number of poles
4
-
Degree of protection (IP)
EV006420
-
RAL-number
9001
-
Number of conductors (without earthing)
4
-
Rated voltage at AC 50 Hz
230
-
Rated current at AC 50 Hz
63
-
Flexible
TRUE
-
Length
0.355

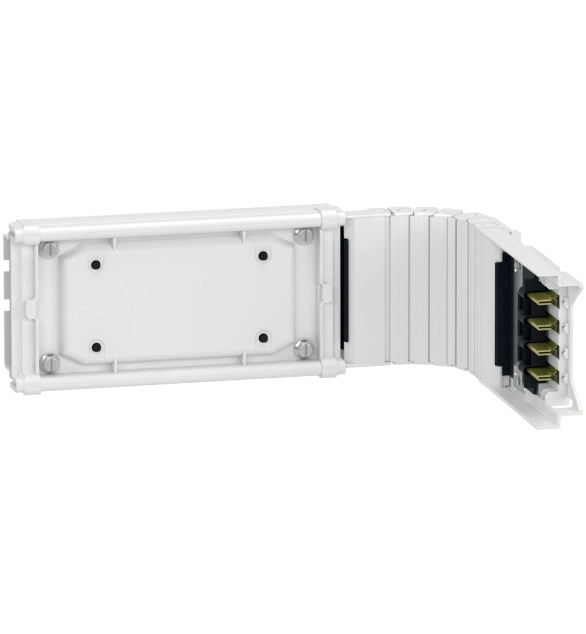

This product is a flexible elbow for Canalis KN offer. It is a changing direction element, with an angle from 80 degrees to 180 degrees. The rated operational current is 63A at 35 ℃. The operational voltage is from 230VAC to 500VAC 50/60Hz. The busbar trunking polarity is 3L+N+PE or 3L+PEN. It can be shaped by hand, on site, to follow any path. The colour is white RAL 9001. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with EN/IEC 61439-6 standard. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
