СКУ: DPPB000196

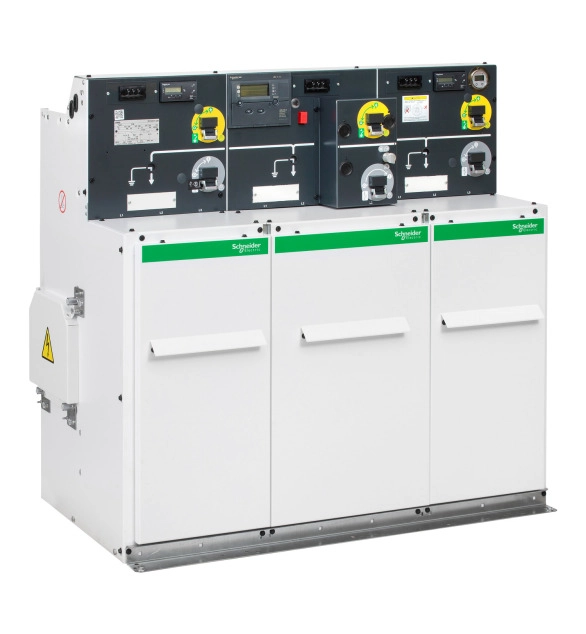

Gas Insulated Switchgear, RM6, switchboard, SOI, HN, 24kV, 400A, 1 switch, manual, 2 incoming cable connections
-
Brand
Schneider Electric
-
Lamp holder
EV000494
-
With integrated voltage decreasing resistor
FALSE
-
With integrated diode
FALSE
-
Transformer integrated
FALSE
-
Voltage type for actuating
EV000509
-
With light source
TRUE
-
Lamp type
EV000432
-
Rated voltage Ue at AC 50 Hz
24
-
Rated voltage Ue at DC
24
-
Rated voltage Ue at AC 60 Hz
24
-
Type of fastening
EV000154
-
Colour lamp
EV000235
This ComPacT NSX400HB1 is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 75kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 5.3 E trip unit, with 400A rating. MicroLogic 5.3 E trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 5.3 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB1 is part of Schneider Electric EcoStruxure Power architecture.
