Galaxy VS UPS 20kW 480V for External Batteries, Start-up 5x8 | Spark & Co
  • 3D
  • 3D
  • 3D
|

СКУ: GVSUPS20KGS

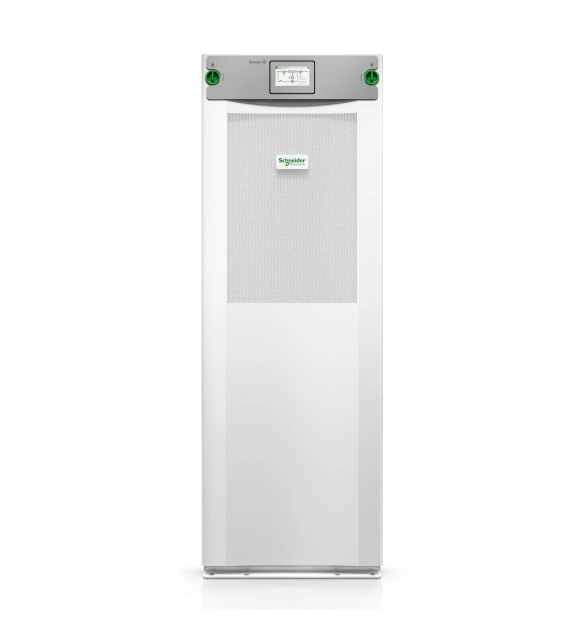

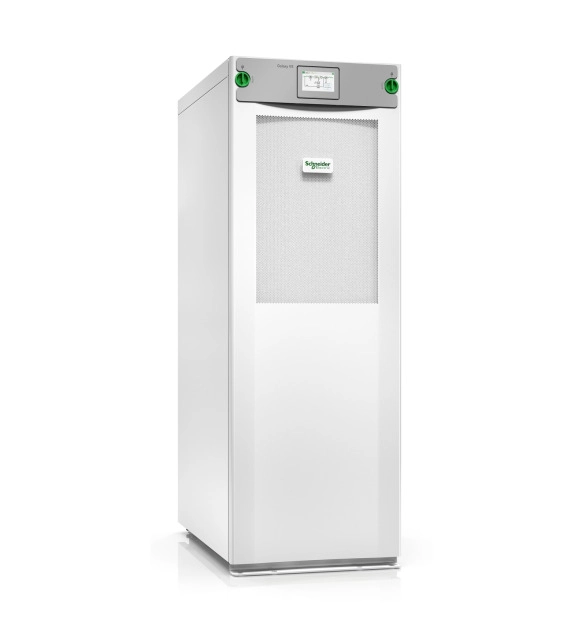

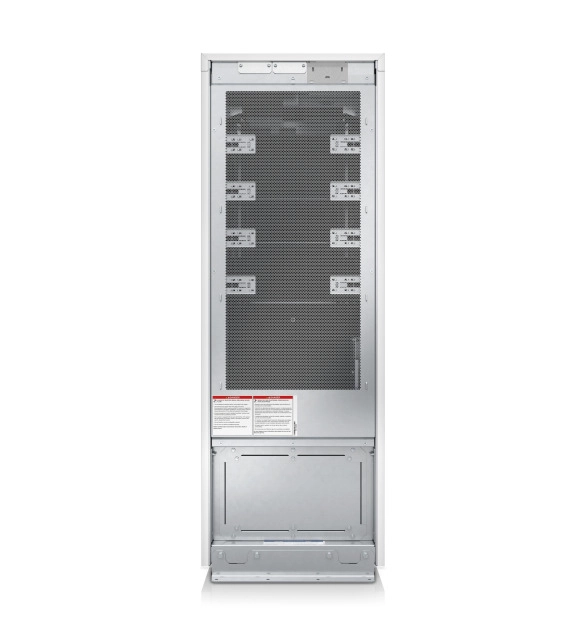

Galaxy VS UPS 20kW 480V for External Batteries, Start-up 5x8

  • Brand
    Schneider Electric
  • Voltage type
    EV000460
  • Potential free switch contact
    TRUE
  • SNMP
    TRUE
  • Overall efficiency
    96
  • With communication interface RS-232
    FALSE
  • Auto shut down function
    FALSE
  • Primary frequency
    50
  • Secondary frequency
    50
  • Construction type
    EV000870
  • Suitable for network-management
    TRUE
  • USB interface
    TRUE
  • Max. voltage distortion output (linear load)
    3
  • USV- technology
    EV007607
  • Input connection
    EV000154
  • Output power factor
    1
  • Modular
    TRUE
  • Efficiency in eco-mode
    98
  • Number of output connections fixed connection
    1
  • Width
    521
  • Height
    1485
  • Depth
    847
  • Number of phases primary
    3
  • Number of phases secondary
    3
  • Output apparent power
    20000
  • Output effective power
    20000
  • Weight
    206
  • Input voltage
    408
  • Output voltage
    475
  • Number of output connections C19
  • Number of output connections C13
  • Number of output connections with protective contact (SCHUKO)
  • Number of output connections French standard (Type E)

Highly efficient, easy-to-deploy 20 kW, 480 V 3-phase UPS that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented eConversion mode reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure connected to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. See the battery runtime chart for details.
