Extreme BOX | Spark & Co
  • 3D
|

СКУ: HMIG3X

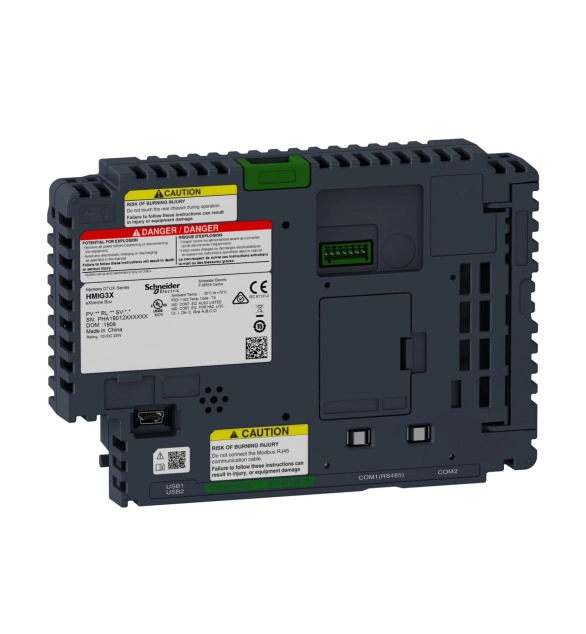

Extreme BOX

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • Radio standard GPRS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Radio standard GSM
    FALSE
  • Radio standard UMTS
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Voltage type of supply voltage
    EV000461
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Radio standard Bluetooth
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Radio standard Wi-Fi 802.11
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • IO link master
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Rail mounting possible
    FALSE
  • Suitable for safety functions
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Wall mounting/direct mounting
    FALSE
  • Supporting protocol for other bus systems
    FALSE
  • With message indication
    FALSE
  • Number of HW-interfaces USB
    3
  • Useful project memory/user memory
    512
  • With numeric keyboard
    FALSE
  • With alpha numeric keyboard
    FALSE
  • With message system (incl. buffer and confirmation)
    FALSE
  • Process value representation (output) possible
    TRUE
  • With printer output
    TRUE
  • Process default value (input) possible
    FALSE
  • With recipes
    TRUE
  • Degree of protection (IP), front side
    EV006423
  • Number of online languages
    10
  • Additional software components, loadable
    FALSE
  • Supporting protocol for EtherNet/IP
    TRUE
  • With SW interfaces
    TRUE
  • Operating temperature
    -30
  • Built-in depth
    45
  • Supporting protocol for TCP/IP
    TRUE
  • Supporting protocol for Modbus
    TRUE
  • Width of the front
    188
  • Height of the front
    131
  • Supply voltage DC
    12
  • Number of HW-interfaces RS-422
    2
  • Number of HW-interfaces RS-485
    2
  • Number of HW-interfaces industrial Ethernet
    5
  • Number of HW-interfaces RS-232
    2
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of function buttons, programmable
  • Number of HW-interfaces other
  • Number of HW-interfaces Wireless
  • Number of buttons with LED
  • Number of system buttons

This product is part of the Harmony GTUX range, an offer of eXtreme Box modules. These eXtreme outdoor Box modules are a high-performance range of HMIs that are ideal for harsh outdoor environments. It is designed with backup memory of NVRAM 512kB, system memory of 1GB, and internal RAM of 256MB. It offers atmospheric resistance with partial conformal coating. It comes with 2x Ethernet TCP/IP protocol and can operate between temperature range of -30 to 70 °C. This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC. Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9 kg. It is compatible with HMIDT35X, HMIDT65X, HMIDT75X displays. It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards. Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software.
