СКУ: VT2233

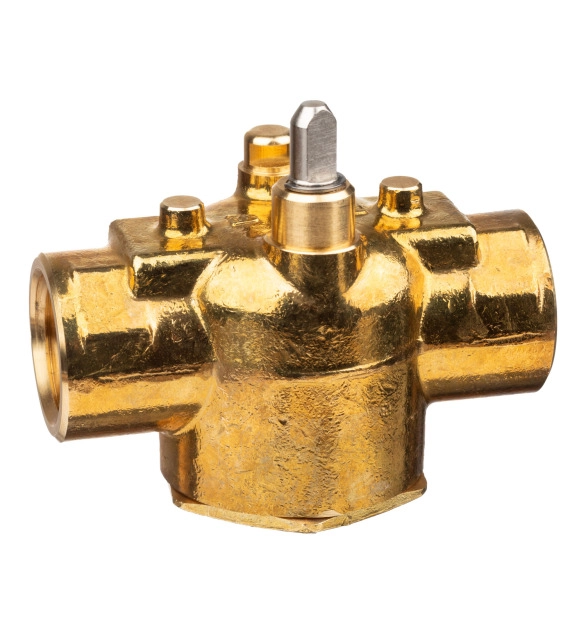

Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 3.0 m?/h (Cv 3.5), Pop-Top Actuator Connection, Brass Body

  • Brand
    Schneider Electric
  • Surface protection
    EV006034
  • Material quality
    EV000154
  • With coupling connection 1
    FALSE
  • Max. medium temperature (continuous)
    93
  • With coupling connection 2
    FALSE
  • Housing material
    EV000149
  • Flange compression class
    EV020104
  • With T-piece for 4-way connection
    FALSE
  • With coupling connection 3
    FALSE
  • Outer pipe diameter all connections
    15
  • Article compression class
    EV000154
  • Installation method, distributive
    TRUE
  • Leakage loss of Kvs value
    0.01
  • Connections
    EV004442
  • Nominal diameter
    EV005372
  • Kvs value
    3
  • Min. medium temperature (continuous)

The industry leading Erie Zone valve is suitable for on/off control of hot and chilled water in terminal unit applications. High flow capacity paddle design and the unique ‘pop-top’ actuator connection allows for a quick and simple installation. Valve size: DN15, Rp 1/2 thread, Flow capacity, Kvs: 3 m³/h.. Pressure class PN20. The valve provide a working temperature range of 0 °C to 93 °C.
