СКУ: OVA48404

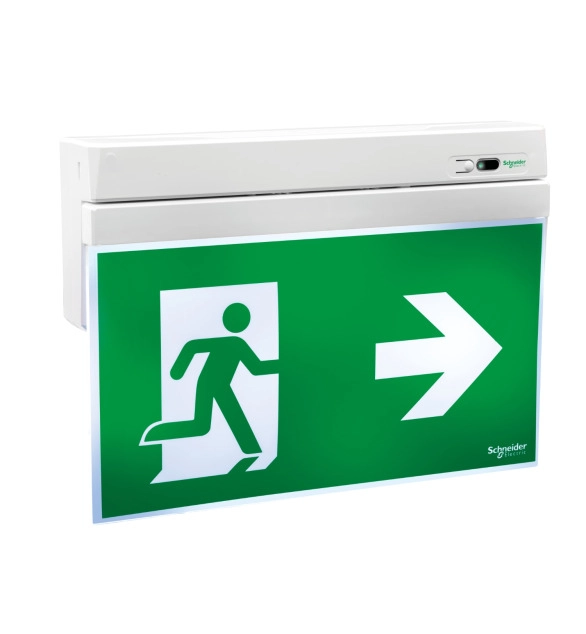

Emergency exit sign, Exiway Smartexit Activa, self-diagnostics, maintained, 24 m, 1 h 30 m
-
Brand
Schneider Electric
-
Lamp holder
EV000494
-
Number of poles
2
-
Material housing
EV000139
-
Degree of protection (IP)
EV006415
-
Nominal voltage
230
-
Voltage type
EV000460
-
With light source
TRUE
-
Lamp type
EV011515
-
Power supply system
EV009693
-
Luminaire with limited surface temperature, sign "D“
FALSE
-
Conductor cross section
2.5
-
With remote control
FALSE
-
Height/depth
45
-
Exchangeable control gear
FALSE
-
Suitable for number of lamps
1
-
Colour housing
EV000202
-
Function
EV014459
-
Constant light output (CLO)
FALSE
-
Width
190
-
Protection class
EV000583
-
Impact strength
EV006810
-
Monitoring equipment
EV009635
-
Connection type
EV000414
-
Type of control gear
EV011530
-
Type of wiring
EV015019
-
Type of indicator
EV002409
-
Light distributor
EV014410
-
Rated life time L70/B50 at 25 °C
100000
-
Material cover
EV006821
-
LED nominal current at constant current
120
-
Mounting method
EV013927
-
Colour temperature
4750
-
Recognition distance
26
-
With pictogram
TRUE
-
Rated luminous flux according to IEC 62722-2-1
40
-
Length
260
-
Rated ambient temperature according to IEC62722-2-1
-5
-
Suitable for labelling type
EV003783
-
With remote switch connection
TRUE
-
Max. system power
2.77
-
Battery quality
EV007507
-
Nominal operation time
1.5
-
Wiring system
EV009649
The Exiway Smartexit is an advanced emergency exit sign solution from Schneider Electric, designed for flexible installation and high visibility. It has a visibility distance of 26 meters, and provides an autonomy of 1.5 hours in emergency mode. This escape route luminaire drives the building occupants to reach the exit of the building. It must be installed above each exit and emergency exit, in the corridors, above obstacles or to indicate a change of direction or level. Its Ue rated operational voltage is 230VAC at 50/60Hz and the power consumption of the luminaire is 2.77W. This device can be mounted on the wall or ceiling or false ceiling. The dimensions of the product are (W) 190mm x (H) 260mm x (D) 45mm. It is made up of polycarbonate (PC). The color of the product is white. Operation temperature is from 0°C up to 40°C, and it reaches IP40 degree of protection. The product has pictograms included inside the package. Exiway Smartexit is suitable for multiple mounting options: wall, ceiling or flag without additional accessories. With advanced battery technology, it consists of LiFePO4 battery for longer expected lifetime. The product complies with the EN 62034, EN/IEC 62471, EN/IEC 60598-2-22 standards.
