Електромер за DIN шина, PowerLogic EM3570, Ethernet, LVDC, LVCT вход в комплект с външно захранване

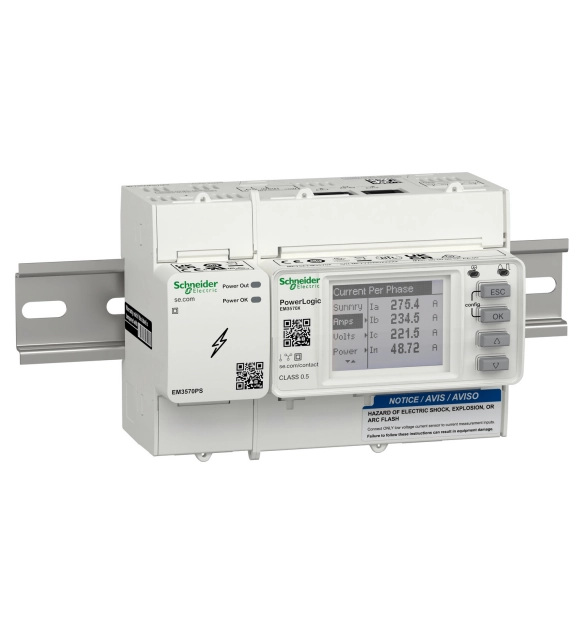

The EM3570 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM3570 models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI (CTs must be rated for use with Class 1 voltage inputs). Bidirectional monitoring supports both upstream and downstream power flow, critical for renewable energy applications. BACnet/IP, Modbus TCP/ IP and SNMP come native, along with Dual Ethernet ports for daisy chain for good versatility and flexibility. The provided 24VDC power supply have the same form factor as the meter, making possible installation side by side. Two digital inputs support status monitoring, pulse counting, multi tariff and partial resets. Relay output for alarm notification. Product dimensions are as follows: width 90+36 mm, depth 70 mm, height 91 mm. Compliant with the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. This reference come with a 24VDC power supply bundled with the meter. The PowerLogic EM3570 supports IPv6 and network auto-detection. It comes with embedded web pages that display real time data, usage peaks and alarm status. Designed with cybersecurity in mind, it also allows full configuration of all network services.
