СКУ: METSEEM3570X

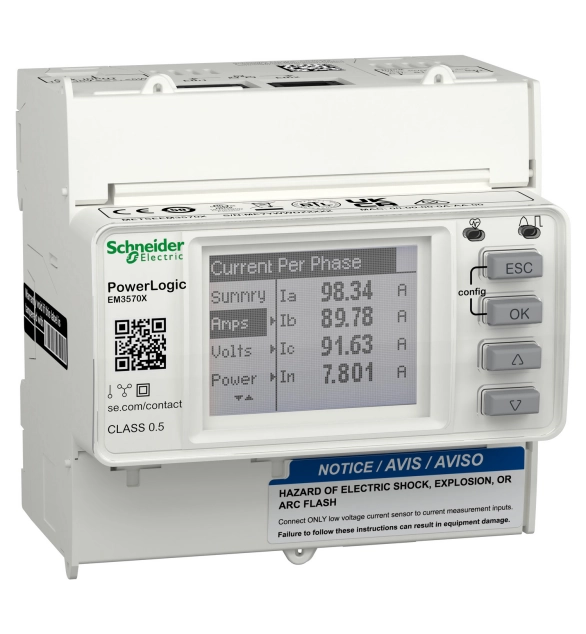

Електромер за DIN шина, PowerLogic EM3570, Ethernet, LVDC, LVCT вход
-
Brand
Schneider Electric
-
Voltage type
EV000509
-
Supporting protocol for LON
FALSE
-
Calibrated
TRUE
-
Supporting protocol for Modbus
TRUE
-
Model
EV010943
-
Pulse output
EV003671
-
Width
96
-
Height
96
-
Pole type
EV011974
-
Nominal current (In)
5
-
Frequency measurement
TRUE
-
Effective power
TRUE
-
Power factor
TRUE
-
Min. value storage
TRUE
-
Wth communication interface M-Bus
FALSE
-
Apparent power
TRUE
-
Top arbour measurement
TRUE
-
With communication interface according to EN 62056-21
FALSE
-
Reactive power
TRUE
-
Mounting method
EV008241
-
With communication interface RS-485
TRUE
-
Measurement type load profile
TRUE
-
Max. value storage
TRUE
-
Indication
EV004575
-
With communication interface KNX
FALSE
-
Measured value memory
TRUE
-
Max. current (Imax)
10
-
Measuring range
100
-
Accuracy class
0.2
-
Step angle (cos phi)
TRUE
The EM3570 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM3570A models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Current input from 20A to 5000A with the Rogowski coil (CTs must be rated for use with Class 1 voltage inputs). Bidirectional monitoring supports both upstream and downstream power flow, critical for renewable energy applications. Not recommanded for high harmonic application. BACnet/IP, Modbus TCP/ IP and SNMP come native, along with Dual Ethernet ports for daisy chain for good versatility and flexibility. The provided 24VDC power supply have the same form factor as the meter, making possible installation side by side. Two digital inputs support status monitoring, pulse counting, multi tariff and partial resets. Relay output for alarm notification. Product dimensions are as follows: width 90+36 mm, depth 70 mm, height 91 mm. Compliant with the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. Use Rogowski rope style CTs. This reference come with a 24VDC power supply bundled with the meter. The PowerLogic EM3570 supports IPv6 and network auto-detection. It comes with embedded web pages that display real time data, usage peaks and alarm status. Designed with cybersecurity in mind, it also allows full configuration of all network services.
