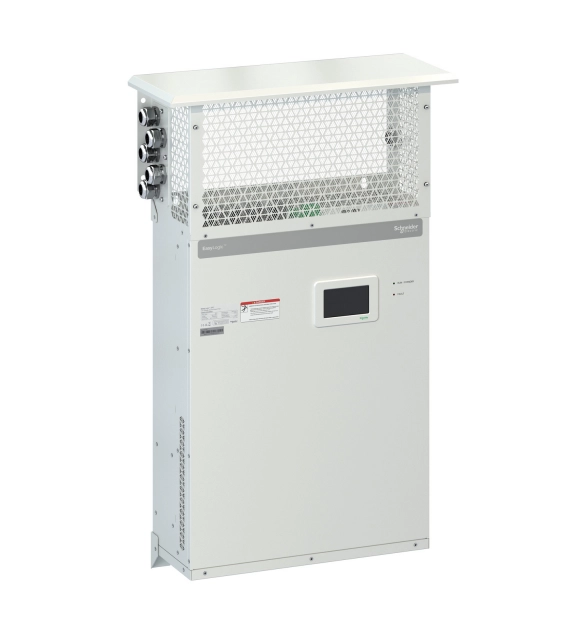

EasyLogic APF 100A 400V wall mount IP31

Schneider Electric EasyLogic APF is an active harmonic filter solution to to stabilize electrical network. It provides harmonic mitigation, power factor correction and mains load balancing. It is suitable for small-mid size commercial buildings and light industries. EasyLogic APF could help achieve good harmonic mitigation performance with total current harmonic distorsion below 5%. This wall-mounted APF module is configured for a 100A RMS output rating. It could be connected with voltage range from 240VAC to 460VAC. The enclosure is vertically mounted with forced ventilation from bottom to top and cable entry from side. It fulfills EMC compliance with built-in EMC filter. The color of the product is light grey, type Pantone 1C. The size of the enclosure is 960mm in height, 600mm in width, 230mm in depth for a product weight of 45kg. It is designed to IEC 62477-1, EN 61000-6-2, EN 61000-6-4 Class A, IEEE Std 519-2014 and certified with CE, RCM. Up to 8 modules can be connected in parallel per set of CT. Any combination of different unit size is possible.  The Ingress Protection of this module is IP31. Reduce unscheduled downtime due to power quality problems thanks to the Active Harmonic Filters of EasyLogic APF.
