СКУ: E3SUPS30K3IB1

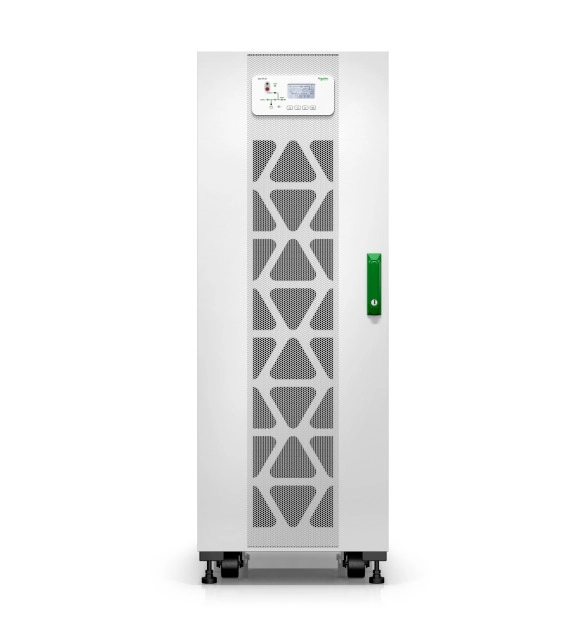

Easy UPS 3S 30kVA 40
-
Brand
Schneider Electric
-
Voltage type
EV000460
-
SNMP
TRUE
-
Potential free switch contact
FALSE
-
Number of output connections C19
-
Number of output connections with protective contact (SCHUKO)
-
Number of output connections fixed connection
-
Auto shut down function
FALSE
-
Primary frequency
50
-
Secondary frequency
50
-
Number of phases secondary
1
-
Construction type
EV000870
-
Overall efficiency
95
-
Height
1400
-
Suitable for network-management
TRUE
-
Max. voltage distortion output (linear load)
3
-
Output voltage
220
-
Number of output connections C13
-
Input connection
EV000154
-
Output power factor
1
-
Width
380
-
Input voltage
380
-
Number of phases primary
3
-
Depth
907
-
Output apparent power
20000
-
Output effective power
20000
-
Weight
231
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 200 Amps. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 582 millimetres in width, 438 millimetres in depth, 1323 millimetres in height and product weight 171 kg.
