СКУ: LV432470
Earth-leakage add-on alarm module VigiPacT, ComPacT NSX 400/630, 200VAC to 440VAC, 30mA to 30A, 4 полюса
-
Brand
Schneider Electric
-
Delay adjustable
FALSE
-
Rated fault current
0.03
-
Rated control supply voltage Us at AC 50HZ
200
-
Rated control supply voltage Us at AC 60HZ
200
-
Max. rated operation voltage Ue
440

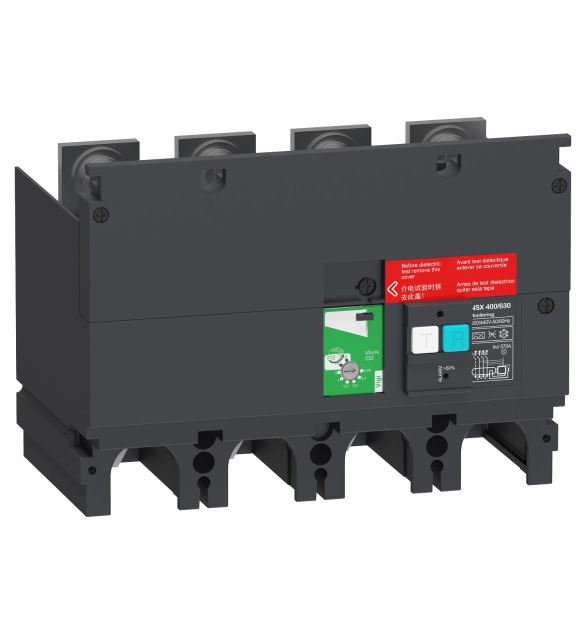

This is a Vigi add-on module for ComPact NSX 400/630 that provides an earth-leakage alarm. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and provides an alarm without tripping in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
