СКУ: LV429499

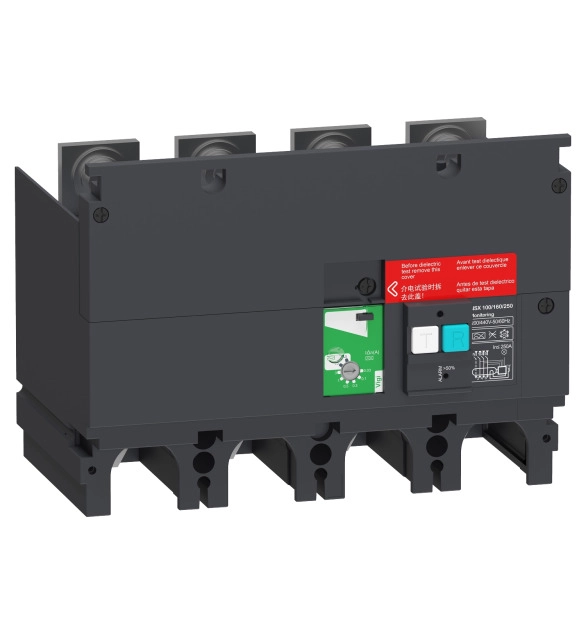

Earth-leakage add-on alarm module VigiPacT, ComPacT NSX 100/160/250, 200VAC to 440VAC, 30mA to 30A, 4 полюса

Brand
Schneider Electric
Delay adjustable
FALSE
Rated fault current
0.03
Rated control supply voltage Us at AC 50HZ
200
Rated control supply voltage Us at AC 60HZ
200
Max. rated operation voltage Ue
440

This is a Vigi add-on module for ComPact NSX 100/160/250 that provides an earth-leakage alarm. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and provides an alarm without tripping in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
