СКУ: SDD111162N

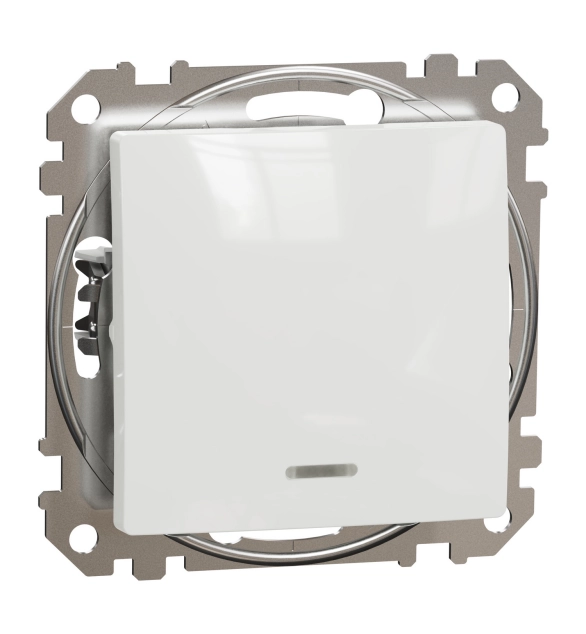

Двуполюсен ключ 16AX черввен индикаторен LED, бял
-
Brand
Schneider Electric
-
Material
EV000139
-
Colour
EV000202
-
With mounting plate
TRUE
-
Rated current
16
-
Material quality
EV000403
-
Nominal voltage
250
-
Mounting method
EV000383
-
Compatible with Apple HomeKit
FALSE
-
Compatible with Google Assistant
FALSE
-
Compatible with Amazon Alexa
FALSE
-
Anti-bacterial treatment
FALSE
-
Surface protection
EV006034
-
IFTTT support available
FALSE
-
Halogen free
TRUE
-
Suitable for degree of protection (IP)
EV006405
-
Type of fastening
EV006353
-
Surface finishing
EV006395
-
Assembly arrangement
EV006345
-
Washing machine switch
FALSE
-
Push button switch
FALSE
-
Label space/information surface
EV004175
-
Feedback-signal contact
FALSE
-
Width of device
73
-
Height of device
73
-
Impact strength
EV006808
-
RAL-number (similar)
9003
-
Number of rockers
1
-
Wiring system
EV000500
-
Illumination
EV004711
-
Heating switch
FALSE
-
Function lighting
EV003682
-
Switching current for fluorescent lamps
16
-
Connection type
EV000154
-
Depth of device
37
-
Built-in depth
24
-
Method of operation
EV000154
-
Type of lighting
EV011515
This is Schneider Electric Sedna Design & Elements Switch mechanism with fixing frame. This is 2-pole switch. A rocker/button is used for operating. The connection of the device is with screwless terminals. The fixing mode of the device is made with screws and claws. Its Ue rated operational voltage 250VAC at 50/60Hz. Its rated current is 16AX. This device is designed to be flush mounted. The dimension of the product is (W) 73mm x (H) 73mm x (D) 37mm. The Projecting depth is 24mm. It is made of thermoplastic ABS-UV stabilized material. The color of the product is white with glossy surface finish. It reaches an IP20 degree of protection. Sedna Design & Elements is a new generation of electrical switches inspired by fashion and interior design. With modern lines that reflect today’s trends and a refined aesthetic, Sedna is more than an afterthought. Sedna Design & Elements goes even further in terms of ergonomics, ease of installation and use, reliability and quality finishes. The product complies with the IEC 60669-1 standard. It has GOST-R product certification.
