СКУ: VW3A4551
Дросел AC 10мH 4а
-
Brand
Schneider Electric
-
Max. rated operation voltage Ue
690
-
Rated operation frequency
50
-
Degree of protection (IP)
EV006404
-
Number of poles, primary side
3
-
Suitable as output reactance coil
TRUE
-
Suitable as commutation reactance coil
FALSE
-
Suitable as net reactance coil
TRUE
-
Rated current at AC
4
-
Suitable as interference suppression reactance coil
FALSE
-
Suitable as ripple filter choke
FALSE
-
Rated inductance
10

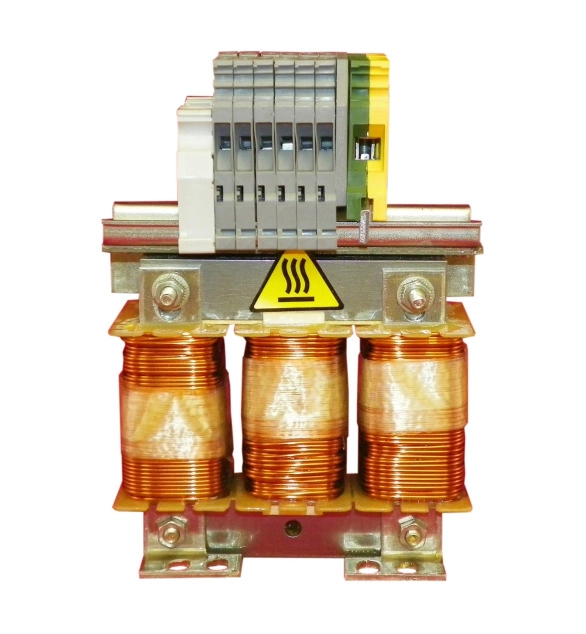

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 4A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 10mH. It weighs 1.5kg and its dimensions are, 100mm wide, 135mm high, 60mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
