СКУ: ABLS1A24200E
Din-rail PSU,Power 480W,DC 24V output
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006405
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Height
125
-
Rail mounting possible
TRUE
-
Voltage type of supply voltage
EV000460
-
Modular version
FALSE
-
Suitable for safety functions
TRUE
-
Direct mounting possible
TRUE
-
Short-circuit-proof
TRUE
-
Secondary voltage adjustable
FALSE
-
Width
85
-
Nominal value output voltage 1
24
-
Wall mounting possible
FALSE
-
1st secondary output voltage
24
-
Rated supply voltage at AC 50 Hz
100
-
Rated supply voltage at AC 60 Hz
100
-
Output voltage stabilized
FALSE
-
Power output
480
-
Max. output current 1
20
-
Stabilized
FALSE
-
Depth
128
-
Nominal value output current 1
20

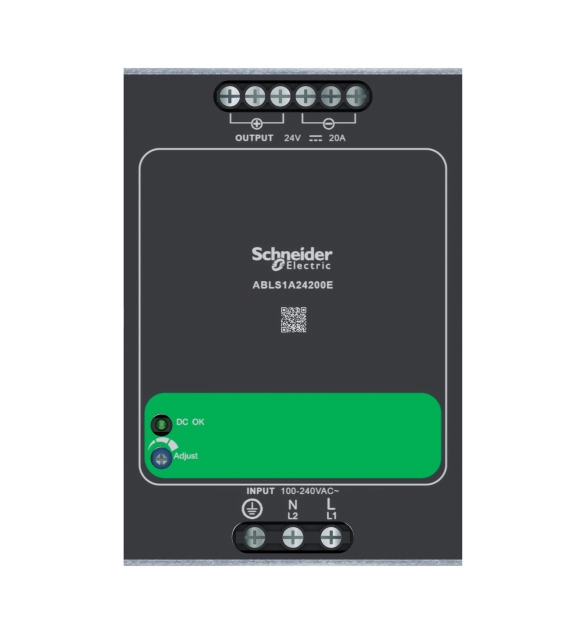

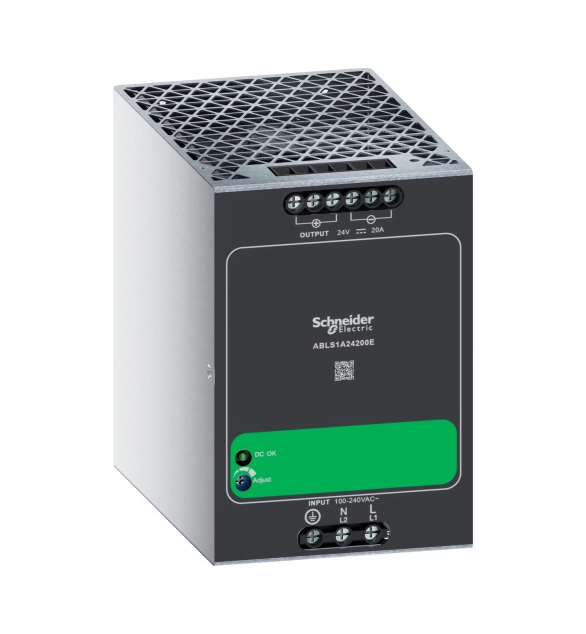

This product is part of the Easy Modicon ABL2 range, an offer of single-phase power supply units. It is a single-phase din-rail mounted PSU. It has a 24V DC output, a nominal power of 480W, and a nominal current of 20A. It is designed for general industries to secure power supply, suitable for loads such as Mid and small-size PLC, Sensors, HMI, I/O modules, switches, Encoders. It works at a rated voltage range from 100V to 240V AC and an operating voltage range from 90V to 264V AC. Overload protection could reach 110 to 130percent. Its dimensions are 85mm (width) x 125mm (height) x 128mm (depth) and weighs 1320g. The range of Easy Modicon PSU has been designed mainly as cost-efficient power supply unit solution for general industries. It follows IEC/EN 62368-1 safety standards and UL 508 regulations. It is compliant with cULus Listed, RoHS, and REACH directives. It is equipped with 4 output terminals, making wiring easier. It has an IP20 degree of protection. It is equipped with an output voltage adjustment potentiometer to be able to compensate for any voltage drops in installations with long cable runs.
