СКУ: NU351418
Димер, бял Universal rotary dimmer LED
-
Brand
Schneider Electric
-
Colour
EV000202
-
Transparent
FALSE
-
Frequency
50
-
Nominal voltage
230
-
Number of modules (module system)
2
-
Connection type
EV001008
-
Mounting method
EV000383
-
Compatible with Apple HomeKit
FALSE
-
Compatible with Google Assistant
FALSE
-
Compatible with Amazon Alexa
FALSE
-
Surface protection
EV006034
-
IFTTT support available
FALSE
-
Material
EV000154
-
Halogen free
FALSE
-
Type of fastening
EV006353
-
Material quality
EV000154
-
Surface finishing
EV006395
-
Assembly arrangement
EV006345
-
Min. depth of built-in installation box
46
-
RAL-number (similar)
9003
-
Core cross section
1.5
-
Impact strength
EV006810
-
Width of device
45
-
Height of device
45
-
Suitable for degree of protection (IP)
EV006406
-
Method of operation
EV000251
-
Type of load
EV011953
-
Applicable with transmission button
TRUE
-
Applicable with infrared button
FALSE
-
Applicable with movement sensor
FALSE
-
Dimming phase cut-on
TRUE
-
Dimming phase cut-off
TRUE
-
Depth of device
47
-
Serial dimmer
FALSE
-
Light value memory
TRUE
-
Nominal power inductive load
14
-
Nominal power resistive load
14
-
Applicable with presence indicator
FALSE
-
Nominal power capacitive load
14
-
App control via Bluetooth
FALSE
-
Applicable with button
TRUE
-
Applicable with time switch/timer
FALSE
-
Substation input
TRUE
-
Max. switching power LED
100

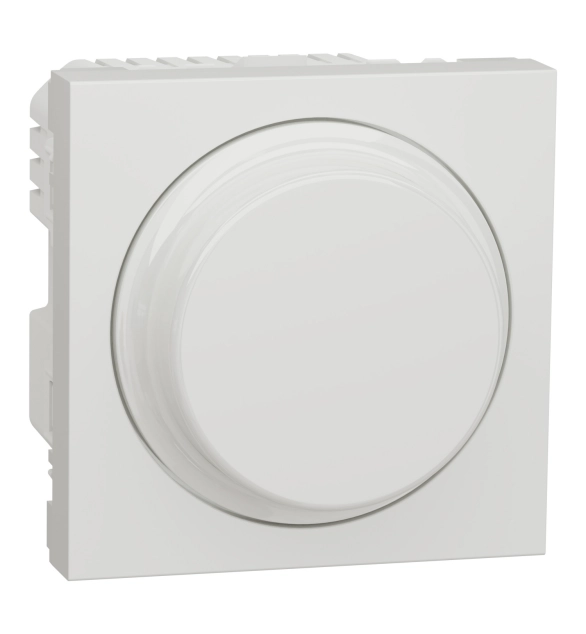

Elevate your lighting experience with the New Unica Rotary Push-Type Dimmer. Its sleek 2-module design offers user-friendly brightness control, making it perfect for any home or office setting. The rated operational voltage is 230VAC. The control type of this dimmer is local control, remote control by auxiliary push-button. Its protection type is automatic overload protection, overheating protection, short-circuit protection, taking care of your safety as much as possible. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. The rated operational voltage is 230VAC. Moreover, it enables both flush mounting. The Ue-rated operating voltage is 230VAC. The dimmer's associated fuse rating is 16A. The color of the device is white, and it has a glossy surface finish. The product complies with the EN 301-489-17, EN 60669-2-1, EN 60730-2-7, EN 300-328 standards. It has NF, NEMKO, EAC, VDE, SEMKO, FIMKO product certifications. This device enables flush mounting, features a screw-fixing mode, and utilizes screw terminals for secure connections. The dimensions of the product are (W) 45mm x (H) 45mm x (D) 47mm, Its embedding depth is 29mm. It has an IP20 and IK04 degrees of protection. The operating temperature is from -5°C up to +40°C and the storage temperature is from -5°C up to +40°C. This device is resistant to UV rays, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, and window-cleaning fluid. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements. New Unica is a modular range that offers a wide variety of products and functions with a sleek and timeless aesthetic that integrate well with other installations. It is designed with clever features to be flexible, easy to understand and quick to install, providing convenient solutions for customer requirements.
