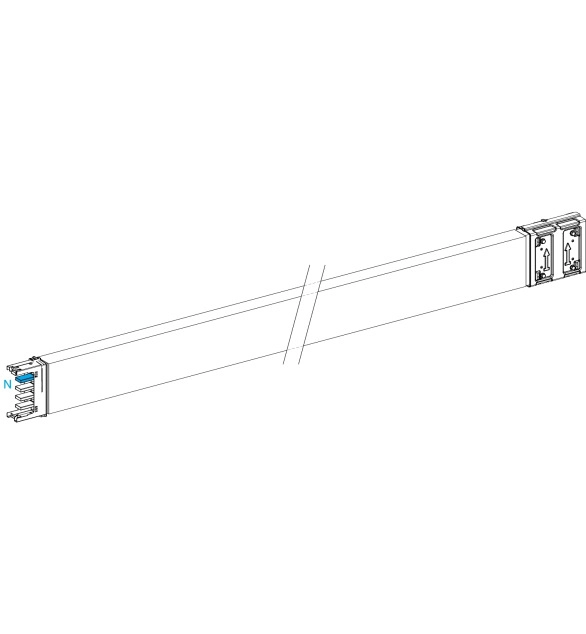

СКУ: KSA400ET430
Дължина без изходи 3M 400A
-
Brand
Schneider Electric
-
Colour
EV000202
-
Number of poles
4
-
Degree of protection (IP)
EV006420
-
Width
54
-
RAL-number
9001
-
Flexible
FALSE
-
Number of conductors (without earthing)
4
-
Model
EV002646
-
Height
146
-
Rated current at AC 50 Hz
400
-
Rated voltage at AC 50 Hz
690
-
Number of tap-off units
-
Length
1900
This is a flexible length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The flexible length is 2m, and the section is 46mm x 46mm. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
