СКУ: EPH0400471
девиаторен ключ , 10AX безвинтов монтаж IP44, антрацит
-
Brand
Schneider Electric
-
Material
EV000139
-
Rated current
10
-
Material quality
EV000403
-
Nominal voltage
250
-
Mounting method
EV000383
-
IFTTT support available
FALSE
-
Halogen free
TRUE
-
Type of fastening
EV006353
-
Surface protection
EV000113
-
Assembly arrangement
EV006345
-
Colour
EV000309
-
Illumination
EV004175
-
Push button switch
FALSE
-
Label space/information surface
EV004175
-
Wiring system
EV000648
-
Feedback-signal contact
FALSE
-
Suitable for degree of protection (IP)
EV006418
-
Depth of device
43
-
Number of rockers
1
-
Method of operation
EV006531
-
Connection type
EV000154
-
Height of device
83
-
Width of device
83
-
Built-in depth
40

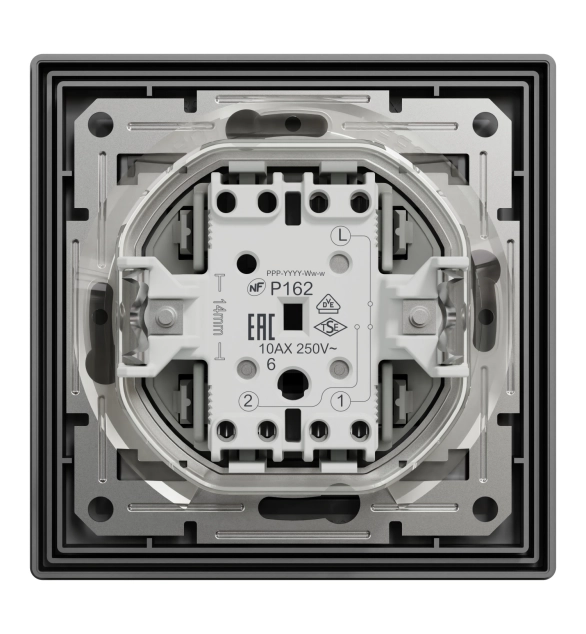

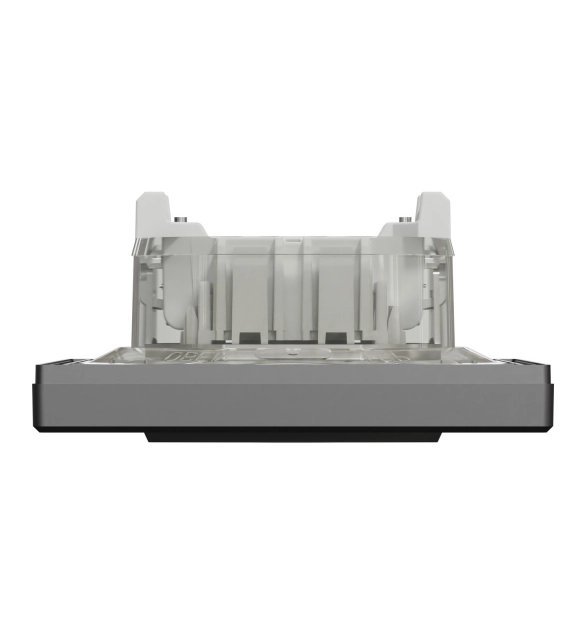

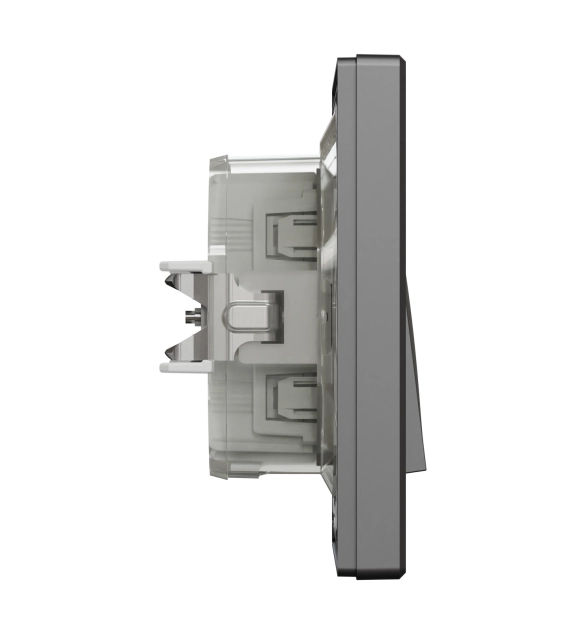

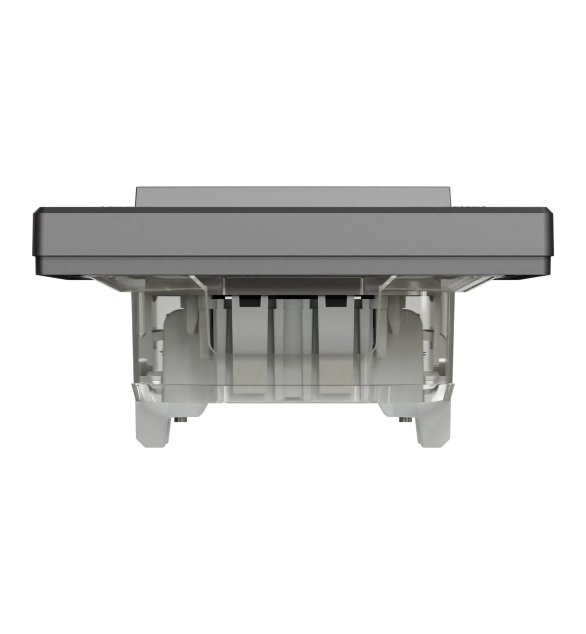

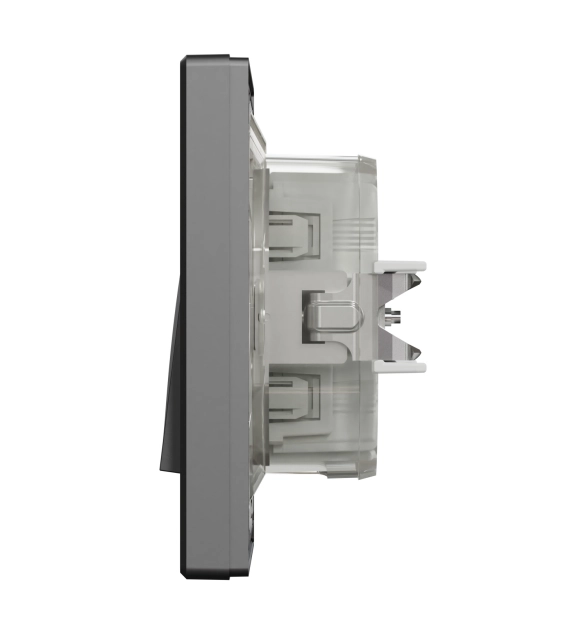

Schneider Electric Asfora switch EPH0400471 is a complete product in color anthracite with 1 rocker. This is a 1-pole 2-way switch. The device's fixing mode is screws or claws. And the rated current of this switch is 10AX, whose power range is 2300W. It is 83 mm in width, 83 mm in height, and 43 mm in depth, with a projecting depth of 15 mm. The device box can be recessed into the surface with flush mounting type. It features painted surface finish, with which it becomes more wear and corrosion resistant. The IP rating of this device is IP44. The connection terminals of this switch are screwless terminals. Being made of ABS (acrylonitrile butadiene-styrene) material, this switch is very reliable and resistant. The conductor material of copper makes it more reliable. It obtained NF, TSE, VDE certificates as well. The device satisfies the standard of IEC 60669-1 too. Also, it has the quality label of CE, UKR. This product is mercury free. The updated Asfora switches now feature smaller, more compact inserts, a profiled fixing frame, improved wire inlets and release buttons, and wide, profiled claws with a return spring, improving the quality and functionality of this switch. Asfora products are made from high-quality materials that won't yellow over time. The sleek, elegant design harmonizes perfectly with virtually any interior.
