СКУ: E160H420FM
CVS1600H 70kA 4P ETS2.0
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Number of poles
4
-
Rated permanent current Iu
1600
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70
-
With integrated under voltage release
FALSE
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Overload release current setting
640
-
Adjustment range undelayed short-circuit release
2400
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as change-over contact

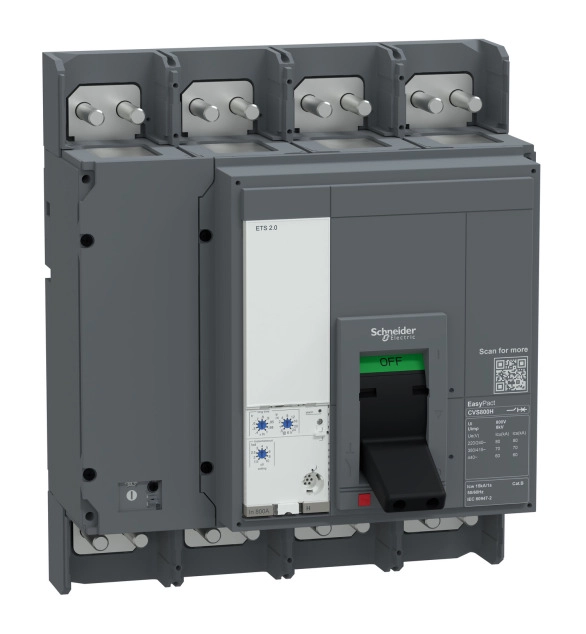

It's a 1600A molded case circuit breaker from EasyPact CVS for distribution protection applications. 70kA breaking capacity at 415VAC. It is 4poles product with embed with a trip unit 1600A at 50℃. It provided long time protection with 9 setting delay adjustment,but no earth-leakage protection. It can be fixed by backplate mounting. This version is 280mm(width),327mm(height),and 147mm(depth). It ensures compliance with multi standards (IEC 60947-6/CCC/CE/CB) specifications.
