CVS1600F 36kA 4P ETS2.0 | Spark & Co
  • 3D
|

СКУ: E160F420FM

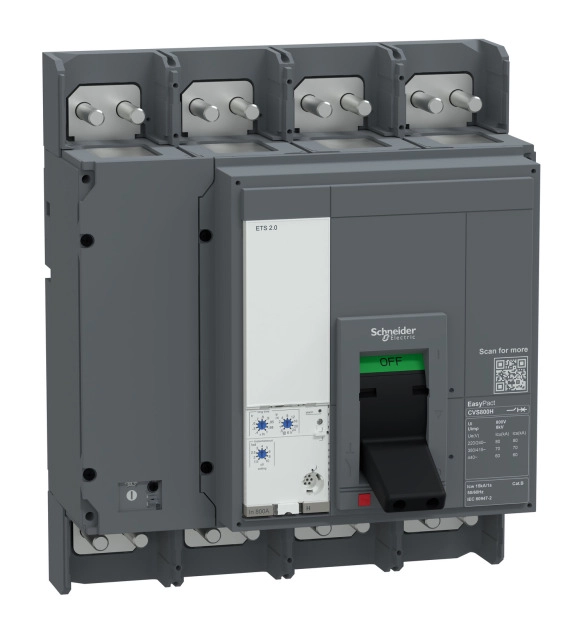

CVS1600F 36kA 4P ETS2.0

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Rated permanent current Iu
    1600
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    36
  • Complete device with protection unit
    TRUE
  • Rated voltage
    440
  • Overload release current setting
    640
  • Adjustment range undelayed short-circuit release
    2400
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of auxiliary contacts as change-over contact

It's a 1600A molded case circuit breaker from EasyPact CVS for distribution protection applications. 36kA breaking capacity at 415VAC. It is 4poles product with embed with a trip unit 1600A at 50℃. It provided long time protection with 9 setting delay adjustment,but no earth-leakage protection. It can be fixed by backplate mounting. This version is 280mm(width),327mm(height),and 147mm(depth). It ensures compliance with multi standards (IEC 60947-6/CCC/CE/CB) specifications.
