СКУ: NSYCVF550M230FB

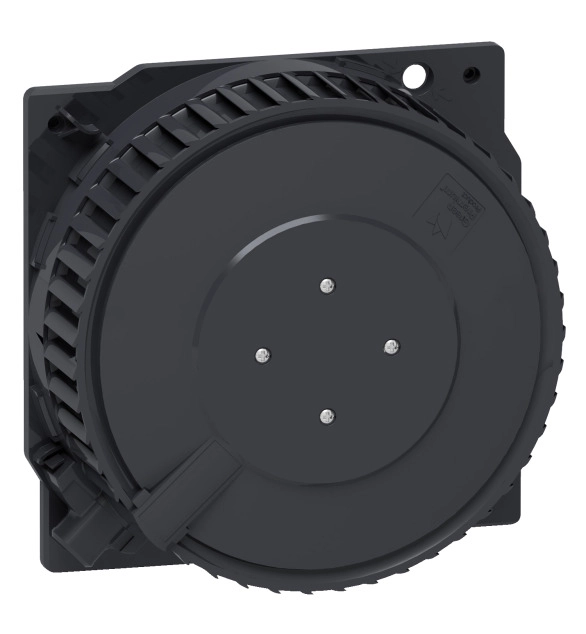

ClimaSys CVHD outврата HD вентилатор-box without grille and филтър 550 m3/h 230VAC
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Voltage type
EV000460
-
Degree of protection (IP)
EV006420
-
With protective cover
FALSE
-
Degree of protection (NEMA)
EV022254
-
Depth
90
-
Suitable for wall built-in
FALSE
-
Mounting method
EV000717
-
Suitable for 19 inch rack mounting
FALSE
-
Air circulator
TRUE
-
Operating voltage at AC 50 Hz
230
-
Operating voltage at AC 60 Hz
230
-
Number of fans
1
-
Built as slide-in ventilator
FALSE
-
With filter
FALSE
-
Width
222.8
-
Noise emission
60
-
Height
222.8
-
Roof ventilator
TRUE
-
Rated power
1500
-
Volume flow, freeblowing
550
ClimaSys outdoor heavy duty 72,88W fanbox without grille and filter ensures effective temperature control inside PHD, S3HD and SFHD enclosures The fan performs free flow rate of 550 m3/h at 50 Hz and 550 m3/h at 60 Hz Motor mounted on ball bearing Equipped with spring clamp terminal The external width is 223mm, height is 223mm and depth is 90mm The accessory is made up of 1 fanbox and 4 screws The color is dark grey (RAL 7016) Ingress protection rating is IP44 (IP55 for grid) Input voltage is 230 V AC 50/60 Hz Rated current is 0,3-0,4A 50 Hz Noise level is 60-60 dB The operating temperature is -40-65 °C Maximum pressure is 350 Pa at flow rate of 0 m³/h Net weight is 1,7kg Certification CE, UL conforming to UL 508A, CSA conforming to CSA C22,2 and ecodesign directive 2009/125/EC Please note, that flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, outside temperature must be 5 °C lower than inside temperature, filter must be cleaned and replaced regularly and surrounding environment must be relatively clean
