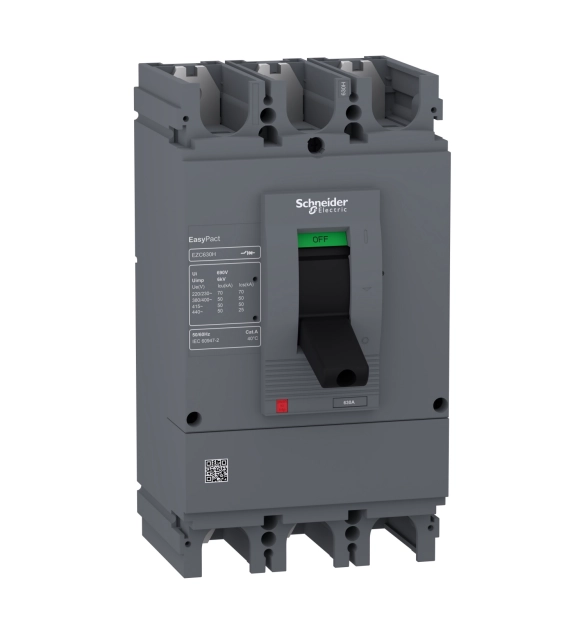

Circuit breaker, EasyPact EZC630H, 50kA at 415VAC, 630A, TMD trip unit, 3P 3d | Spark & Co
  • 3D
|

СКУ: EZC630H3630N

Circuit breaker, EasyPact EZC630H, 50kA at 415VAC, 630A, TMD trip unit, 3P 3d

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006405
  • Number of poles
    4
  • Rated permanent current Iu
    400
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50
  • Number of auxiliary contacts as change-over contact
    5
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Rated voltage
    220
  • Complete device with protection unit
    TRUE
  • Adjustment range undelayed short-circuit release
    3200

EasyPact EZC630N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 400A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Easypact EZC630N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
