СКУ: LV563307

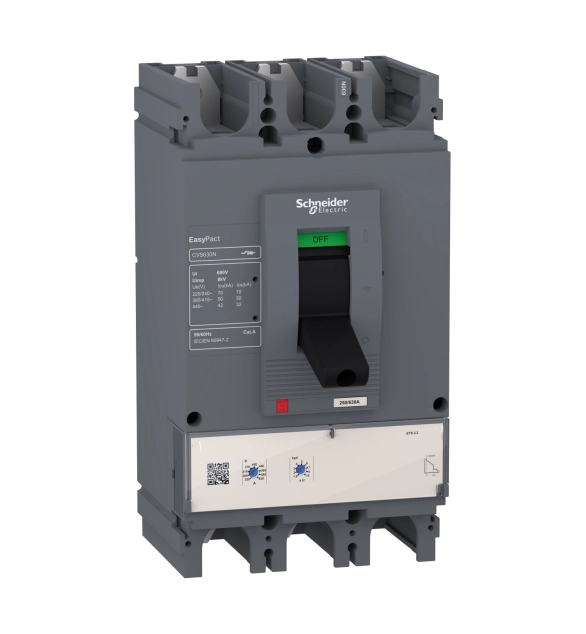

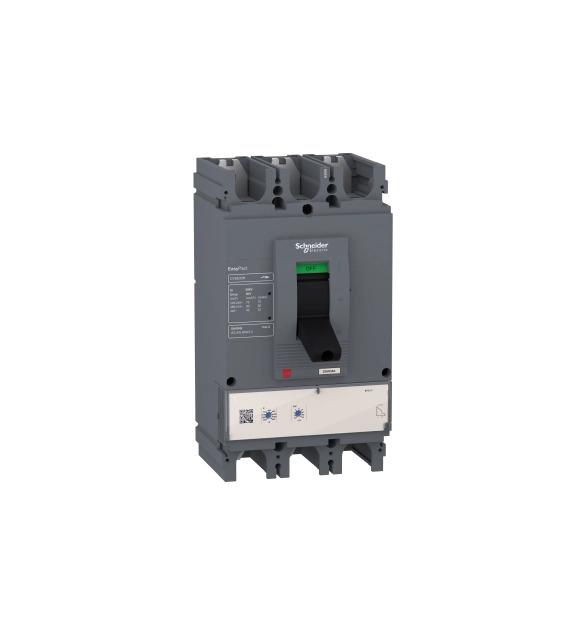

Circuit breaker, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 3P 3d
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
630
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36
-
Number of auxiliary contacts as change-over contact
-
Complete device with protection unit
TRUE
-
Overload release current setting
-
Rated voltage
440
-
Adjustment range undelayed short-circuit release
2520
This device is a 630/500A switch disconnector from EasyPact CVS630. This operational current(Ie) is 630/500A, which is depending on utilisation category AC22 or AC23. The rated short-time withstand current(Icw) is 6000A(1s). The version of device is 3poles frame without tripping protection. It is conformed to standard EN/IEC60947-3 for switch disconnector products. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equipped extended rotary handle, additional IP54 protection degree for extended rotary handle. This series have slots for control auxiliaries(MN/MX), which is indicated contact status. The fixed dimension is 140mm width, 255mm height, 110mm Depth.
