Cen.pla. f. ro.dim.ins. nim SDsg

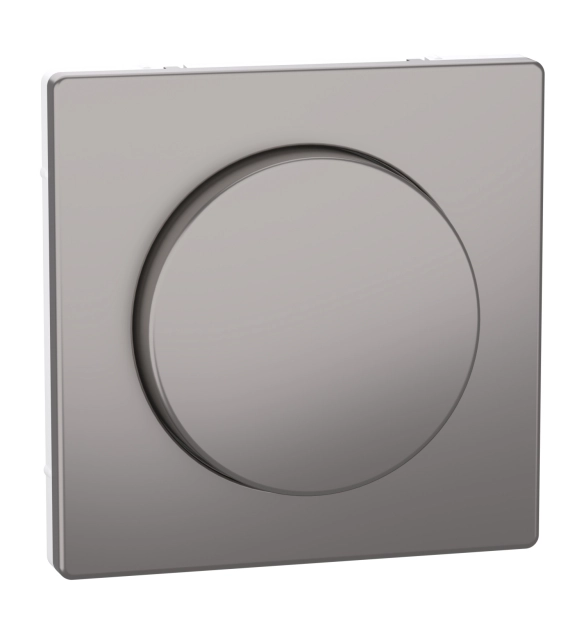

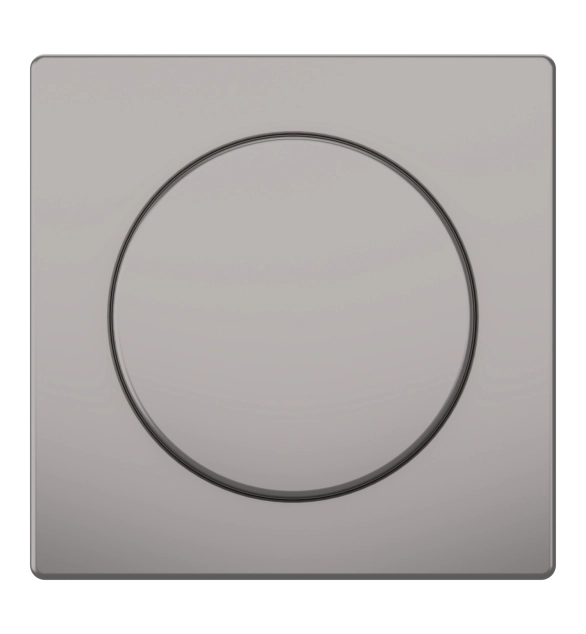

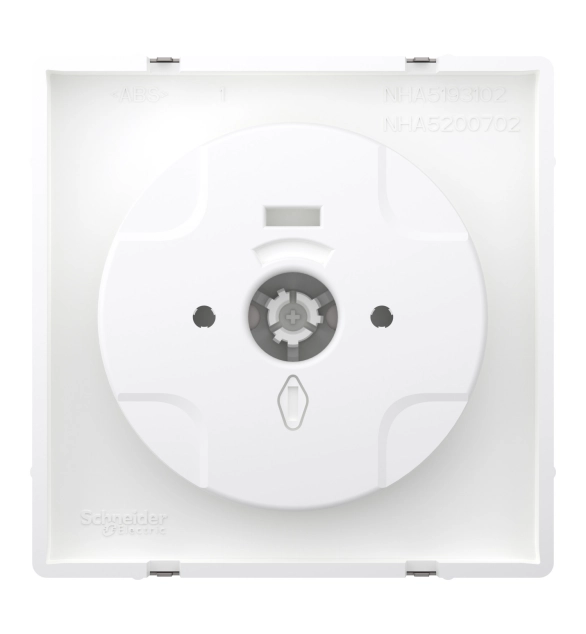

Merten System Design central plate by schneider electric is a logic module of the thermostat used to control the indoor temperature. This product is compatible with both inserts, 16A relay for Electrical heating (UFH, radiators, Hydronic UFH) and the 2A relay for hydronic systems (radiators, UFH, circulating pumps, and motorized valves). The communication port protocol of this device is Zigbee 3.0, integrated into the Wiser home system. This product act as the Temperature controller for electric underfloor heating with a floor sensor. Power Consumption in a Standby condition shall be less than 0.5W. Its Transmission frequency is 2.4GHz and the operating distance range is 30m in open space. This device is designed to be flush mounted and can be installed in a wall box CE60. The dimensions of the product are (W) 70.6mm x (H) 70.6mm x (D) 20mm and product weight is 45g. It is made of thermoplastic. The color of the product is lotus white (RAL 9003) with matt surface finish. It reaches IP30 degree of protection. From controlling conventional installations to intuitive KNX technology, System Design offers all the functionality of a flexible modern switch range and the new design concept provides the largest possible control surface. System Design offers the maximum number of possible combinations and great flexibility. It provides a wide range of inserts for a conventional installation with switches, socket-outlets, dimmers, USB chargers, RJ45 connectors and many more.
