СКУ: A9N61650
C60PV-DC - 2P - 10A - 800 V - B крива
-
Brand
Schneider Electric
-
Concurrently switching neutral conductor
FALSE
-
Width in number of modular spacings
4
-
Degree of protection (IP)
EV006415
-
Frequency
50
-
Number of poles (total)
2
-
Number of protected poles
2
-
Additional equipment possible
TRUE
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Over voltage category
4
-
Connectable conductor cross section multi-wired
1
-
Rated current
10
-
Release characteristic
EV000074
-
Ambient temperature during operating
-25
-
Built-in depth
44
-
Rated impulse withstand voltage Uimp
6
-
Connectable conductor cross section solid-core
1
-
Pollution degree
2
-
Voltage type
EV000461
-
Rated insulation voltage Ui
1000
-
Rated voltage
800

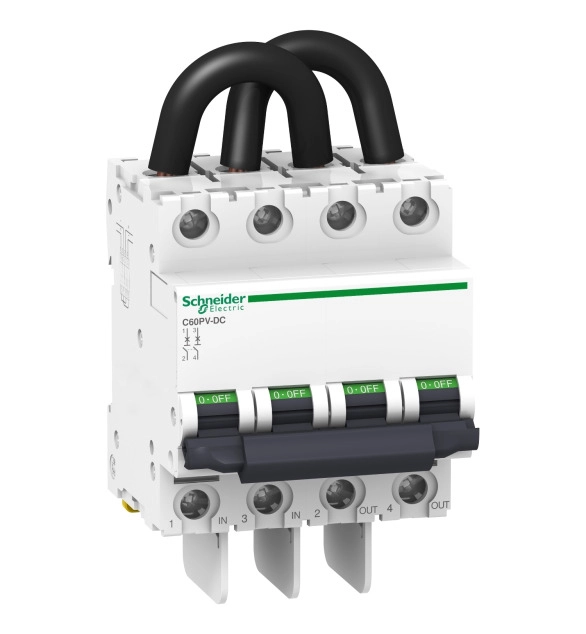

This Acti9 C60PV-DC is a low voltage miniature circuit breaker (MCB) dedicated to multi string photovoltaic installations. It is a 2P circuit breaker with 2 protected poles, 10A rated current and B tripping curve. It can be mounted on DIN rail for modular installation. Its width is 8 modules of 9mm. As circuit breaker, its breaking capacity, according to IEC/EN 60947-2, is 1.5kA at 800VDC and 3kA at 650VDC. It is designed to protect the cables located between each string of photovoltaic modules and the photovoltaic inverter against overloads and short circuits. It has an IP40 degree of protection (as per IEC/EN 60529) on its terminals in modular enclosure. Its fast closing mechanism, independent of the speed of actuation of the toggle, improves its service life. The tripping or position indication functions are remotely provided by adding electrical auxiliaries. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety.
