СКУ: LVS04107

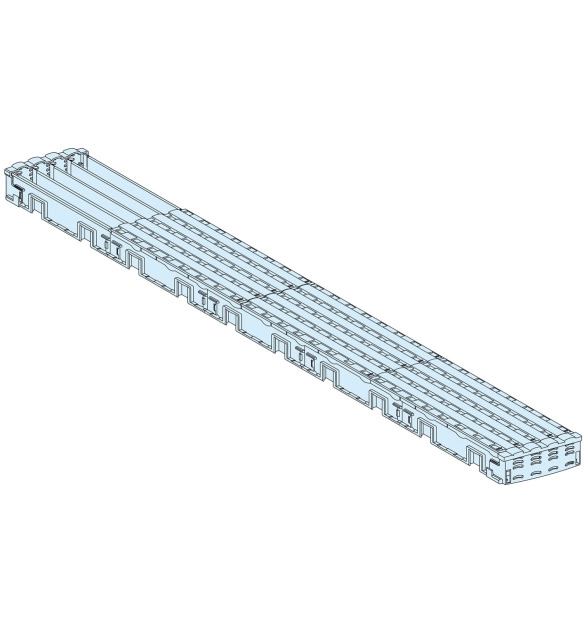

Busbar, Linergy BW, 3P, 125A, insulated busbar, vertical, L750mm

Brand
Schneider Electric
Surface protection
EV006034
Flexible
FALSE
Model
EV000880
Rated current In
125
Length
750

Busbar designed for use in electrical distribution systems and is compatible with PrismaSeT P and PrismaSeT G enclosures. 3-pole insulated busbar from Linergy BW. Busbar has a rated operational current of 125A and a rated short-time withstand current of 8.5 kA. Busbar is also rated for a peak withstand current of 20 kA. The busbar is 750mm long. It is connected using M6 threaded holes with a connection pitch of 25mm.
