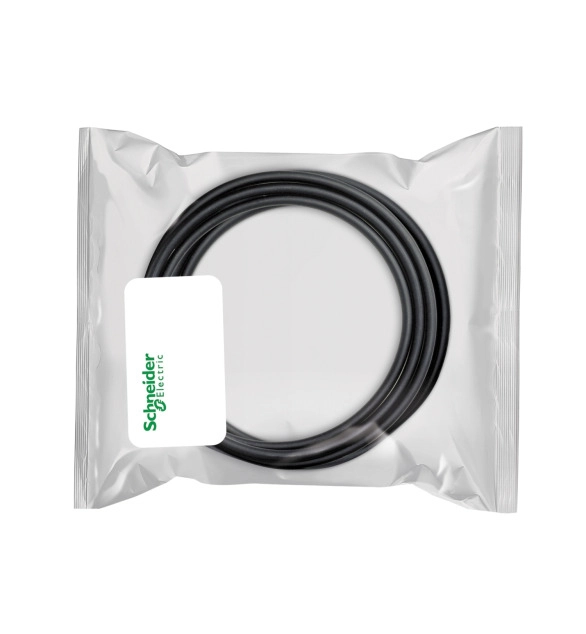

СКУ: VW3M5103R50
BSH MOTOR CABLE 4AїA2 5M
-
Brand
Schneider Electric
-
Frequency
50
-
Degree of protection (IP)
EV000154
-
Euro class acidity according to EN 13501-6
EV000494
-
With protective conductor
FALSE
-
Spiralized cable
FALSE
-
Smoke development class according to EN 13501-6
EV000494
-
Reaction-to-fire class according to EN 13501-6
EV000494
-
With cord switch
FALSE
-
Oil resistant (according to EN 60811-404)
TRUE
-
Euro class flaming droplets/particles according to EN 13501-6
EV000494
-
Material outer sheath
EV000154
-
Connector system system-oriented
FALSE
-
Colour outer sheath
EV000270
-
Length
5
-
Number of cores
6
-
Nominal voltage
200
-
Temperature resistance
-40
-
Connection 1
EV008543
-
Connection 2
EV001106
-
Nominal cross section conductor
4
This product is part of the Lexium 32 range, an offer of connection accessories for Lexium 32 and motors. This power cable is an accessory of servo drives and motors. The length of this cable is 5m. It is furnished with M40 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 4mm² + 2 x 1mm². It is used between servomotor BSH and servo drive. It weighs 2.13kg. This range is compatible with Lexium 32, Lexium 15 and Lexium 05 servo drives. This product is compatible with servo motor BMH, 1 motor stack (190mm). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
