СКУ: GV3L25

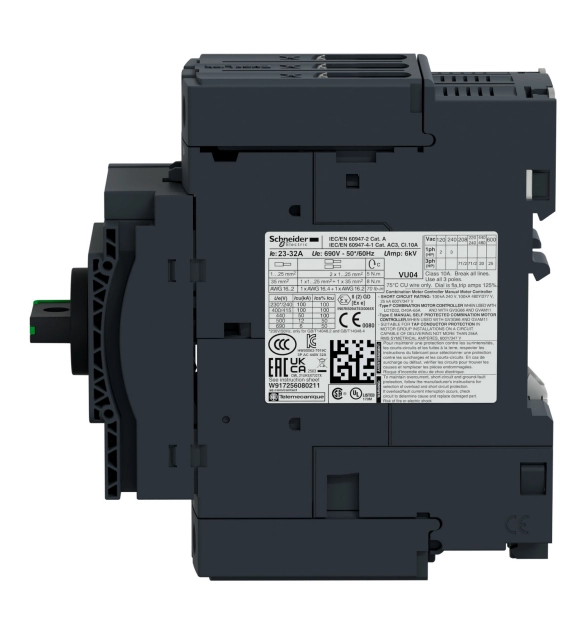

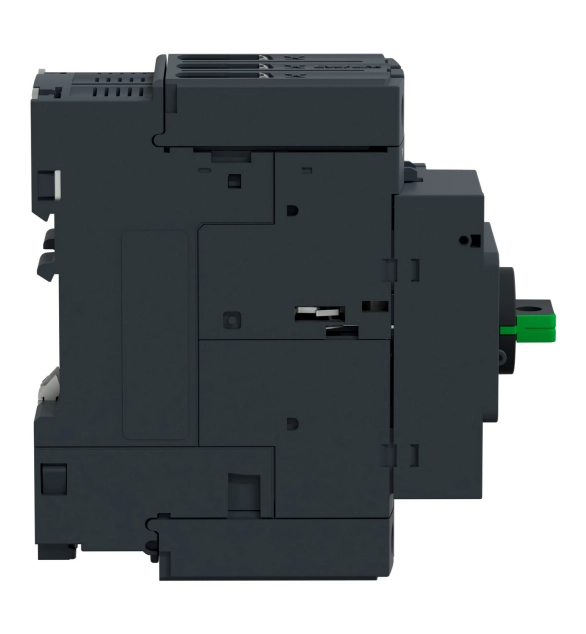

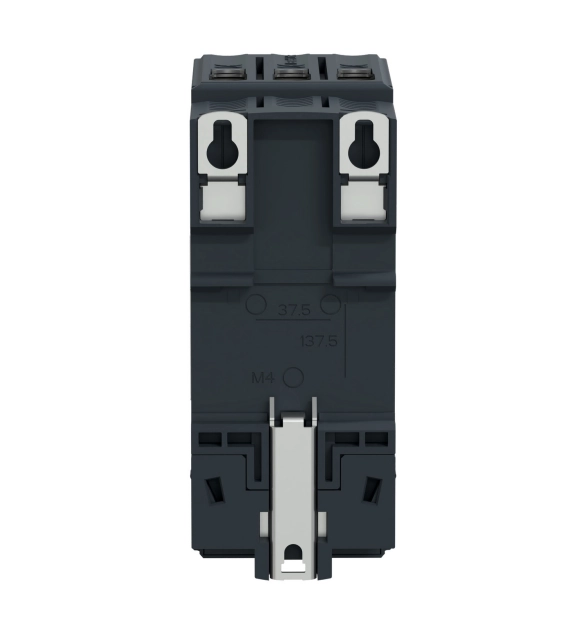

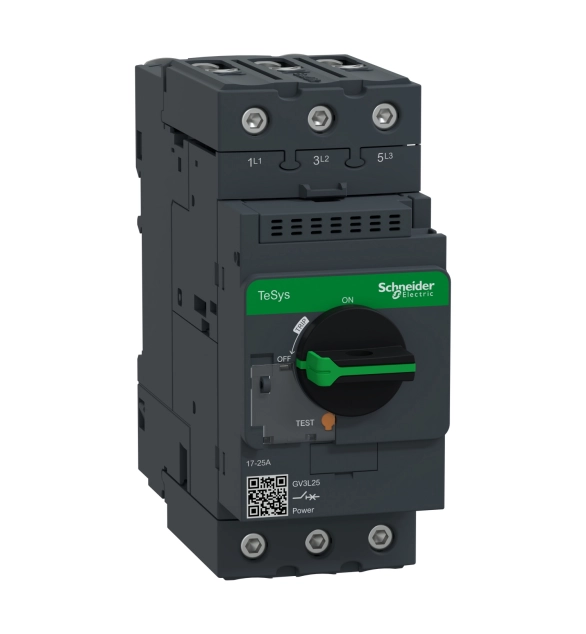

Автоматичен прекъсвач с магнитна Защита TeSys GV3 - 25 A -EverLink BTR конектори
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated permanent current Iu
25
-
Rated operation power at AC-3, 400 V
11
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000092
-
With integrated under voltage release
FALSE
-
Width
55
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
Phase failure sensitive
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, AC
100
-
With thermal protection
FALSE
-
Device construction
EV009311
-
Rated operation power at AC-3, 230 V
5.5
-
Depth
136
-
Height
132
-
Adjustment range undelayed short-circuit release
350
TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW/400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 100kA/400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD325 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).
