СКУ: 21105

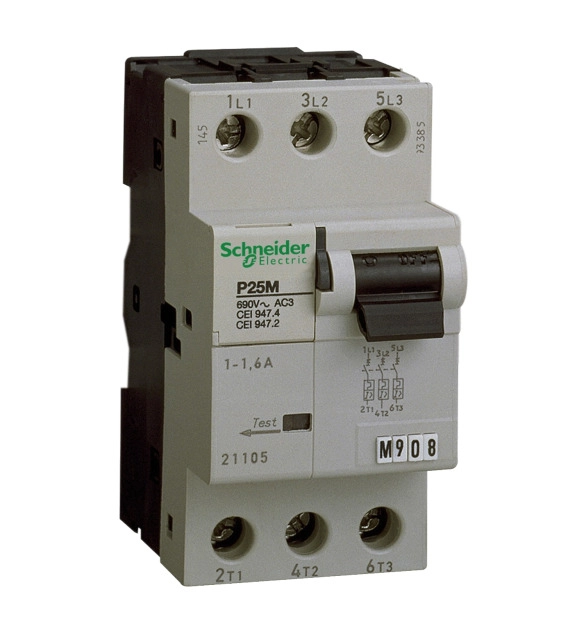

Автоматичен прекъсвач - P25M - 3 полюса - 1.6A - крива
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as normally closed contact
1
-
Width in number of modular spacings
1
-
Voltage type for actuating
EV000460
-
Rated voltage
415
-
With auto test for earth leakage function
FALSE
-
Additional equipment
EV009832
-
Number of contacts as change-over contact
-
Number of fault-signal switches
-
Rated switch current
2.2
-
Device fitting
EV000646
-
Suitable for max. number of poles main contact unit (total)
3
-
Suitable for max. current main contact unit
25
-
Installed at the factory
FALSE
This Acti9 NG125 electrical auxiliary is a normally open/close contact mounted on DIN rail. It is dedicated to Acti9 P25M. It is used for remote indication of the position of the associated device. The 2 contacts 1NO + 1NC indicates "open" or "closed" position of the associated device. The width in 9mm pitches is 1. The operating temperature is -20°C to + 60°C. The storage temperature is -40°C to + 80°C. This product complies with IEC/EN 60947-5-1 standards.
