Автоматичен прекъсвач NSXm 50kA TM25D 3P Конектори EverLink | Spark & Co
  • 3D
|

СКУ: C11N3TM025L

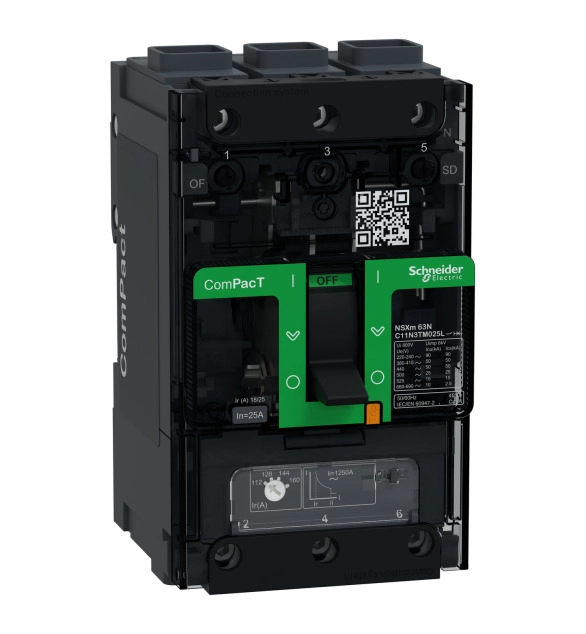

Автоматичен прекъсвач NSXm 50kA TM25D 3P Конектори EverLink

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Rated permanent current Iu
    25
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Overload release current setting
    10
  • Complete device with protection unit
    TRUE
  • Rated voltage
    440
  • Suitable for DIN rail (top hat rail) mounting
    TRUE
  • Integrated earth fault protection
    TRUE
  • Adjustment range undelayed short-circuit release
    375
  • Adjustment range short-term delayed short-circuit release
    15

This ComPacT NSXm device is a 3 poles circuit breaker designed to optimize space and breaking capacity. The rated current (In) is 80A. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. Power connections are compression lugs or busbar connections. The product can be installed on a DIN rail or a mounting plate. It embeds new spring type auxiliaries externally visible. This circuit breaker is equipped with a thermal-magnetic trip unit. The dimensions are 81mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications. ComPacT NSXm is part of the global Schneider Electric Environmental Program.
