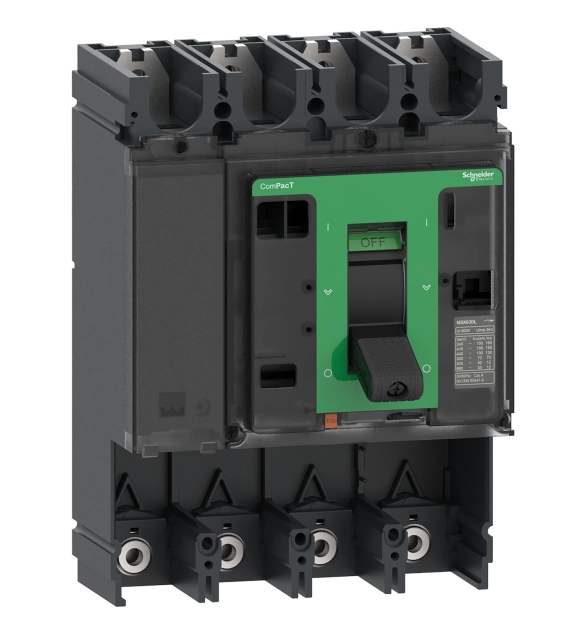

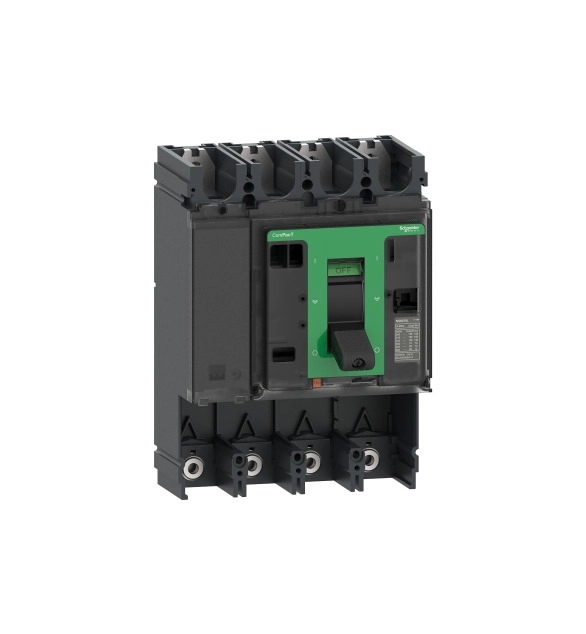

Автоматичен прекъсвач NSX630L 150kA AC 3P 630A без вкл. изключвателно устройство

This device is an electronic control unit MicroLogic 5.0P for ComPacT NS630-NS1600 circuit breakers, fixed and manually operated. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. MicroLogic control unit has a new design and colour (dark grey). The control unit rating is fixed by an additional long time rating plug which has to be ordered separately through the product selector. This control unit has selective protections and is designed to protect power circuits and loads. MicroLogic 5.0P control unit provides an overload protection (true rms and adjustable long time protection). MicroLogic 5.0P control unit provides adjustable short-circuit protections (rms short time and instantaneous protections). The control unit rating is fixed by an additional long time rating plug which has to be ordered separately through the product selector. MicroLogic 5.0P is equipped with a digital LCD screen and displays power (power meter) and rms values of currents. MicroLogic P type indicates overloads with an alarm LED and is able to display the trip cause through 4 others LEDs. MicroLogic P type is equipped with a digital LCD screen that displays all measurements and events. The MicroLogic P type calculates in real time all the electrical values (V, A, W, VAR, VA, Wh, VARh, VAh, Hz), power factors and cos phi factors. ComPacT is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
