СКУ: C40L4

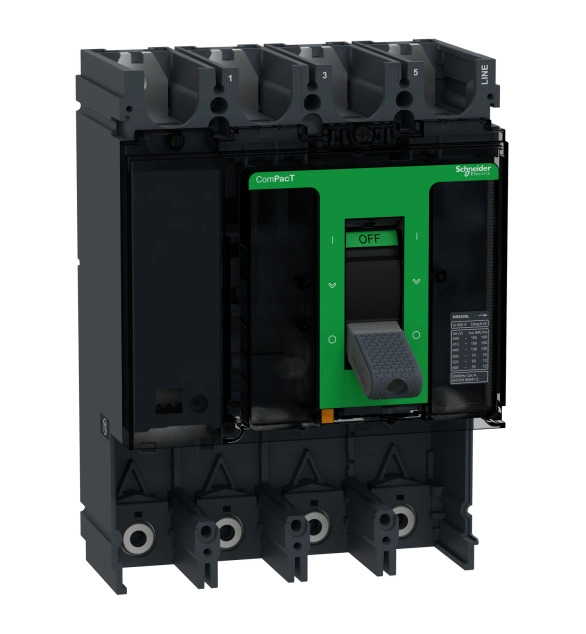

Автоматичен прекъсвач NSX400L 150kA AC 4P 400A без вкл. изключвателно устройство
-
Brand
Schneider Electric
-
Rated permanent current Iu
1600
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Overload release current setting
252
-
With ground fault protection function
FALSE
-
Initial value of the undelayed short-circuit release - setting range
378
-
Short-circuit release function
EV003978
-
End value adjustment range undelayed short-circuit release
16000
This is a 4 poles basic frame for ComPacT NSX400N. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately. The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 185mm x 255mm x 110mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400N is part of Schneider Electric EcoStruxure Power architecture.
