Автоматичен прекъсвач NSX400F 36kA AC 3P 400A без вкл. изключвателно устройство | Spark & Co
  • 3D
|

СКУ: C40F3

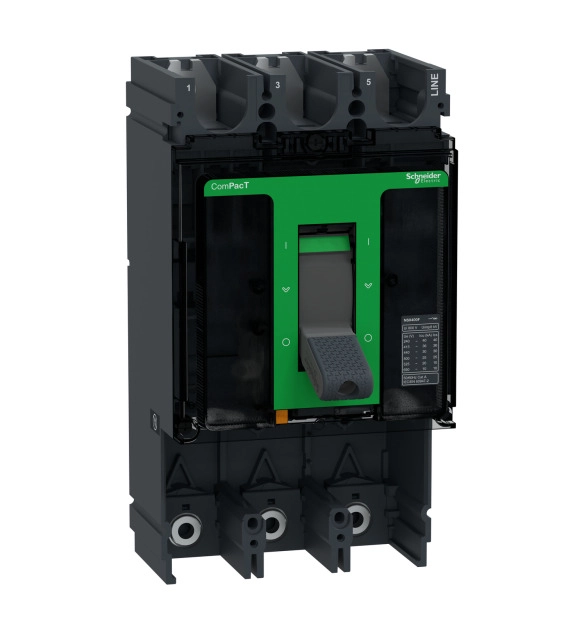

Автоматичен прекъсвач NSX400F 36kA AC 3P 400A без вкл. изключвателно устройство

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Rated permanent current Iu
    400
  • Complete device with protection unit
    FALSE
  • Type of control element
    EV000421
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70
  • With integrated under voltage release
    FALSE
  • DIN rail (top hat rail) mounting optional
    TRUE

This is a 4 poles basic frame for ComPacT NSX250N. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately. The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 140mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250N is part of Schneider Electric EcoStruxure Power architecture.
