СКУ: C25R45E100

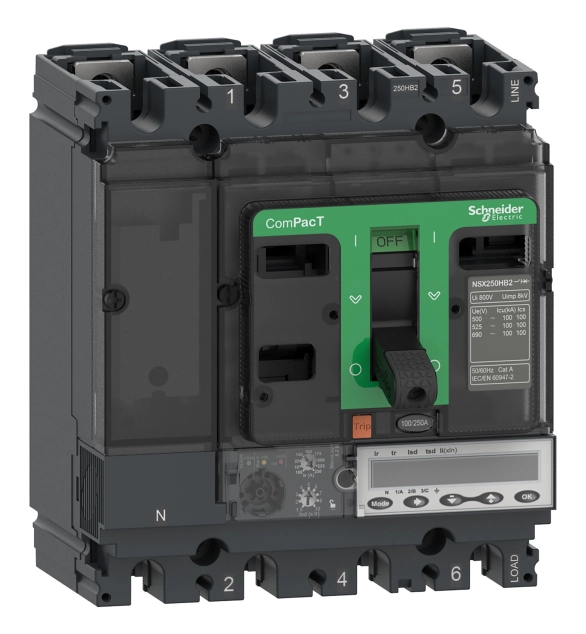

Автоматичен прекъсвач NSX250R 200kA AC 4P 100A 5.2E
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Rated operating voltage
690
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Width
105
-
Type of control element
EV000154
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
With thermal protection
FALSE
-
Height
161
-
Phase failure sensitive
FALSE
-
Rated permanent current Iu
220
-
Depth
86
-
Adjustment range undelayed short-circuit release
1980
-
Rated short-circuit breaking capacity lcu at 400 V, AC
200
This ComPacT NSX250R is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.2 trip unit, with 250A rating. MicroLogic 2.2 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250R is part of Schneider Electric EcoStruxure Power architecture.
