СКУ: C25H32M220

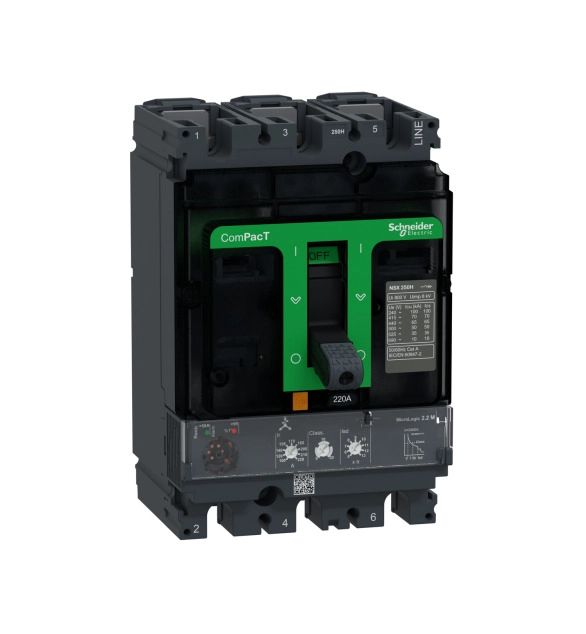

Автоматичен прекъсвач NSX250H 70kA AC 3P3D 220A 2.2M
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Rated operating voltage
690
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Width
105
-
Type of control element
EV000154
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
With thermal protection
TRUE
-
Height
161
-
Switch off technique
EV000101
-
Rated short-circuit breaking capacity lcu at 400 V, AC
70
-
Overload release current setting
100
-
Rated permanent current Iu
220
-
Depth
86
-
Adjustment range undelayed short-circuit release
3300
This ComPacT NSX250H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.2 M trip unit, with 220A rating. MicroLogic 2.2 M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250H is part of Schneider Electric EcoStruxure Power architecture.
