СКУ: C25F44B240

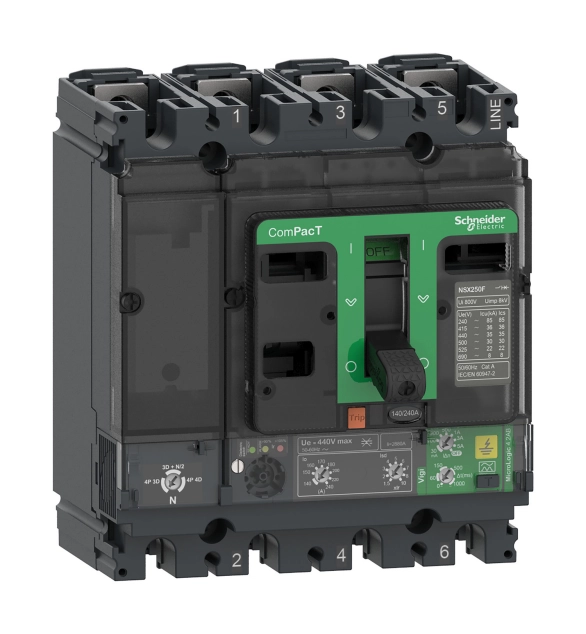

Автоматичен прекъсвач NSX250 4P 36kA MicroLogic 4.2 AB Vigi 240 А
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Degree of protection (IP)
EV006415
-
Number of poles
4
-
Type of control element
EV000421
-
Position of connection for main current circuit
EV007926
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
DIN rail (top hat rail) mounting optional
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Overload release current setting
140
-
Integrated earth fault protection
TRUE
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as change-over contact
-
Rated permanent current Iu
240
-
Adjustment range short-term delayed short-circuit release
210
-
Adjustment range undelayed short-circuit release
2880
ComPacT NSX250F is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 240A rating electronic MicroLogic 4.2AB Vigi trip unit, with an integrated adjustable earth-leakage protection. MicroLogic 4.2AB Vigi provides also adjustable long time and short time protections, and a fixed instantaneous protection. The dimension is 161mm x 140mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
