СКУ: C10F3D

Автоматичен прекъсвач NSX100F 36kA DC 3P 100A без изключвателно устройство

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Number of poles
    4
  • Rated permanent current Iu
    250
  • Complete device with protection unit
    FALSE
  • Type of control element
    EV000421
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    100
  • DIN rail (top hat rail) mounting optional
    TRUE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Rated voltage
    750
  • Degree of protection (IP)
    EV006414

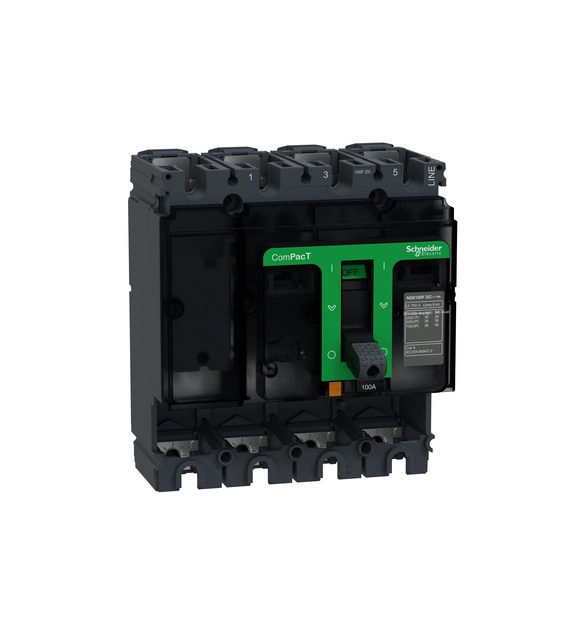

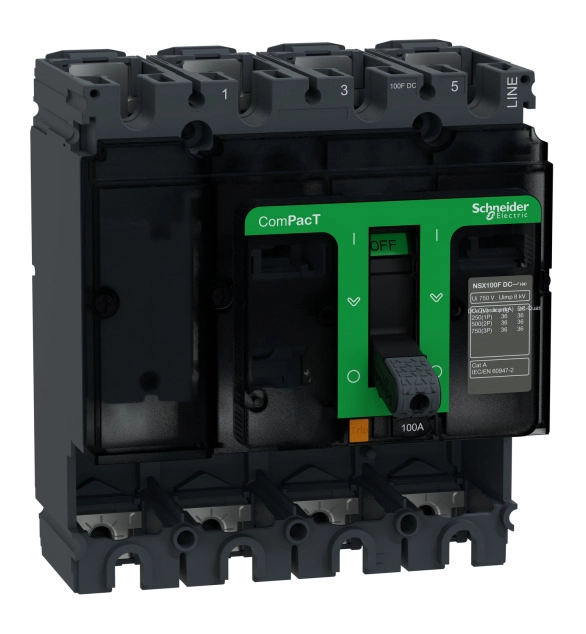

It is a 3 poles basic frame for ComPacT NSX 100F DC circuit breaker, designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The rated current is 100A and the operational voltage is 750VDC. This basic frame comes without trip unit (to be ordered separately) and can be equipped with a variety of optional functions and accessories. The dimensions are 161x105x86 mm (H x W x D). It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
