СКУ: 18890

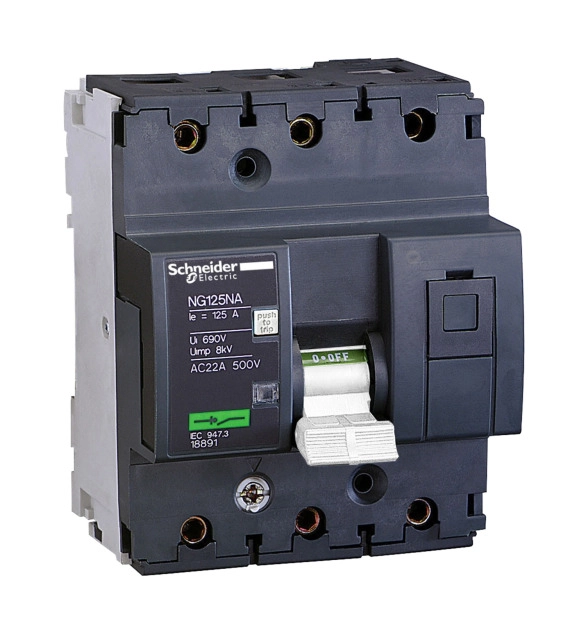

Автоматичен прекъсвач NG125NA 3P 80A
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Frequency
50
-
Built-in depth
47
-
Rated insulation voltage Ui
690
-
Additional equipment possible
TRUE
-
Rated impulse withstand voltage Uimp
8
-
Rated voltage
400
-
Voltage type
EV000509
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Pollution degree
3
-
Rated current
80
-
Connectable conductor cross section solid-core
16
-
Connectable conductor cross section multi-wired
10
-
Width in number of modular spacings
4.5
-
Number of poles (total)
3
-
Number of protected poles
3
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
-
Release characteristic
EV014062
This Acti9 NG125 is a switch disconnector. It is a 3P switch disconnector with 125A rated current at 500VAC. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. Electrical endurance goes up to 1000 cycles. Mechanical endurance goes up to 20000 cycles. The Ui rated insulation voltage is 690VAC. It has a Uimp rated impulse withstand voltage of 8kV. The operating frequency is 50Hz or 60Hz. It can be mounted on a 35 mm symmetrical DIN rail for modular installation. Its width is 9 pitches of 9mm. The dimensions are (W) 81mm x (H) 103mm x (D) 81mm. The weight is 0.72kg. The color is black (RAL9005). According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -10°C to 60°C. The storage temperature is -40°C to 70°C. This product complies with IEC 60947-3 standard.
