СКУ: 18887

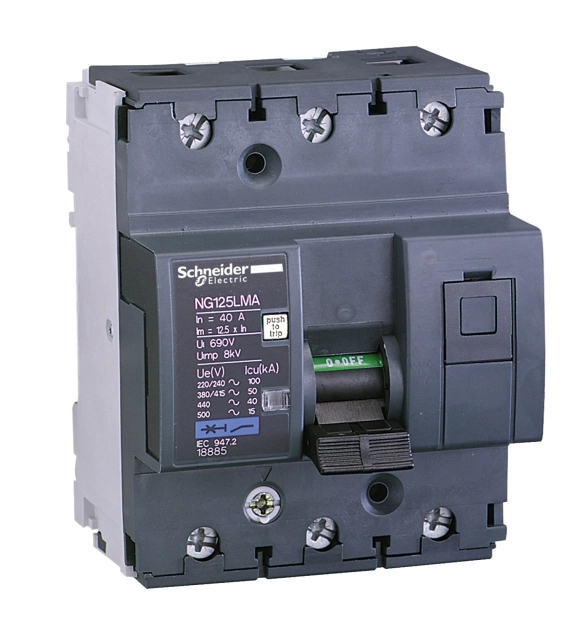

Автоматичен прекъсвач NG125LMA 3P 80A крива MA
-
Brand
Schneider Electric
-
Number of poles
3
-
Degree of protection (IP)
EV006405
-
Rated insulation voltage Ui
690
-
Rated impulse withstand voltage Uimp
8
-
Connectable conductor cross section solid-core
1.5
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Nominal voltage
230
-
Nominal current
63
-
Delay adjustable
FALSE
-
Frequency
EV008015
-
Surge current capacity
3
-
Rated fault current adjustable
FALSE
-
With interlocking device
TRUE
-
Anti-nuisance tripping version
FALSE
-
Rated fault current
0.03
-
Max. delay time
-
Ambient temperature during operating
5
-
Leakage current type
EV000460
This Acti9 NG125L product is a low voltage circuit breaker. It is a 2P circuit breaker with 2 protected poles and 80A In rated current and D tripping curve. The rated short circuit breaking capacity goes up to 50kA at 380VAC to 415VAC conforming to EN/IEC 60947-2 standard. It complies with EN/IEC 60947-2 industrial standard. This miniature circuit breaker protects circuits against short circuit and overload current. It is suitable for isolation in the industrial sector according to IEC/EN 60947-2 standard. The fault tripping is indicated by a red mechanical state indicator light on the front face of the circuit breaker. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is going from 380VAC to 415VAC. The Ui rated insulation voltage is 690VAC. The Uimp rated impulse withstand voltage is 8kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 54mm x (H) 103mm x (D) 81mm. The weight is 0.48kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 70°C.
