СКУ: EZC630H3600N

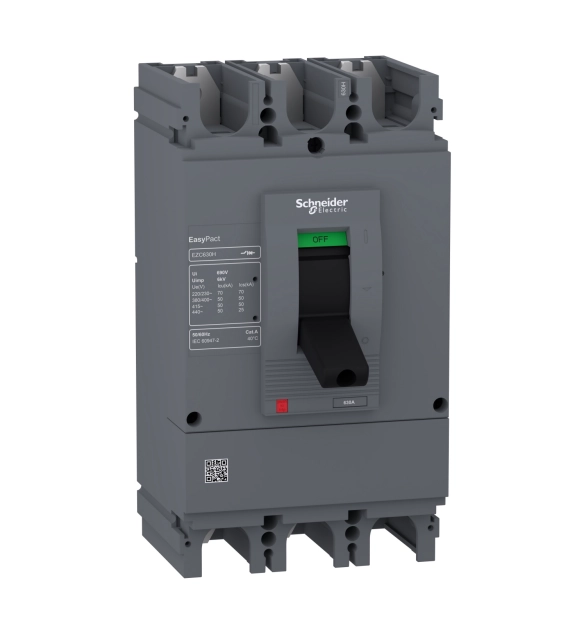

Автоматичен прекъсвач Easypact EZC630H - TMD - 600 A - 3 полюса 3d
-
Brand
Schneider Electric
-
Number of poles
3
-
Device construction
EV009211
-
Degree of protection (IP)
EV006405
-
Rated permanent current Iu
630
-
Type of electrical connection of main circuit
EV008864
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
With switched-off indicator
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With integrated under voltage release
FALSE
-
Motor drive integrated
TRUE
-
Number of auxiliary contacts as change-over contact
5
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36
-
Number of auxiliary contacts as normally open contact
5
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Number of auxiliary contacts as normally closed contact
5
This is a straight length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 3 tap-off outlets maximum spaced every meter on the main circuit (front). It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 2m, and the section is 30mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
