СКУ: EZC250F3200

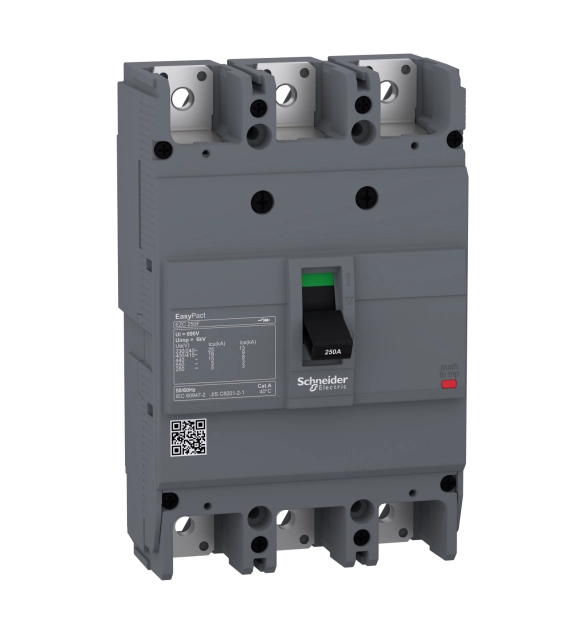

Автоматичен прекъсвач EasyPact EZC250F - TMD - 200 A - 3 полюса 3d
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated permanent current Iu
63
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006405
-
Number of poles
4
-
Number of auxiliary contacts as change-over contact
2
-
Type of control element
EV000421
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
DIN rail (top hat rail) mounting optional
TRUE
-
Number of auxiliary contacts as normally closed contact
2
-
Complete device with protection unit
TRUE
-
Number of auxiliary contacts as normally open contact
2
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
18
-
Rated voltage
550
This is a 50A circuit breaker for EasyPact EZC100E. This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz and 250VDC. This version of product is designed 4 poles frame with detection on 3 poles,equiped TMD trip unit for thermal-magnetic protection. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure,and against from safety risk by padlocking. This series have slots used for indication or voltage release auxiliaries positioning, depending on where it is inserted in the device behind the front cover of circuit breaker.
