СКУ: EZC100H3040

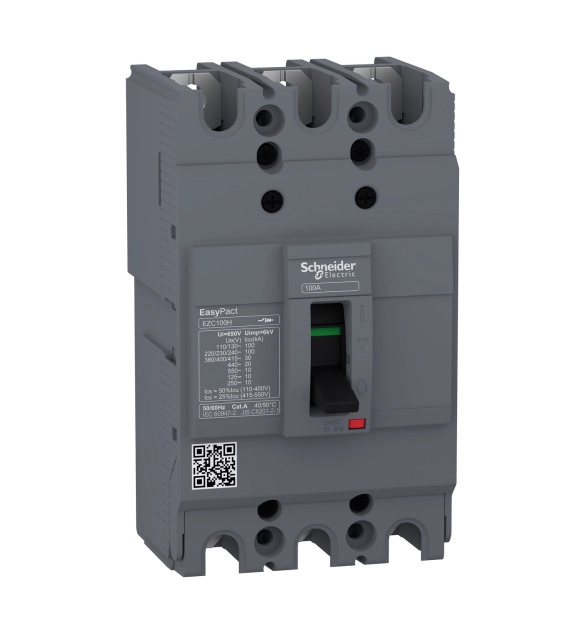

Автоматичен прекъсвач Easypact EZC100H - TMD - 40 A - 3 полюса
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006405
-
Rated permanent current Iu
100
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Complete device with protection unit
TRUE
-
Overload release current setting
-
Rated voltage
550
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
30
This EVlink Pro DC product is a fast charging station for all electrical vehicles compliant with IEC61851-1 ed.3 and IEC61851-23 standards. This charging station is floor-standing. The IP degree of protection is IP55. The IK degree of protection is IK10 and IK08 for touchscreen. The operating temperature is between -30°C and 50°C derating starting from 50°C. The output is a 5m attached cable with 2 CCS2 vehicle connector at the end, associated with cable management solution. The nominal output power is 180kW. The charger is supplied in three-phase (L1+L2+L3+N+PE). The rated charging current is 291A under 380VAC to 415VAC +/- 10% with a 50 or 60Hz frequency. It can be used with a TN-S / TNC-S or TT earthing system. It is also IT compatible with an additional isolation transformer on the power supply. The charging station is heavy solution requiring lifting gear to install it. It can be commissionned via a laptop connected to the embedded webserver. It is recommended for vehicle depot, public and traffic application. The authentication for the charge authorization can be done thanks to RFID or NFC badge, QR code scan or vehicle MAC address. The charging station includes a touchscreen permitting to the end-user to select connector he wants to use, authentication means and to control its charge. A stop button permits also to stop rapidly a charge if needed. The charging station can be also stopped from remote backend. The screen provides information about the status of the charge of the vehicle. A multicolor led indicates also the status of the charge and the charging station. The charging station includes a RJ45 ethernet port for LAN connection. It also includes Wi-fi and 4G modem connection. The charging station can be managed in standalone or in clustered architecture with backend application for energy management and/or user authentication, billing. Parameters of the charging station are set through an embedded web server. The OCCP 1.6 communication protocol is used to connect to the supervision device. The available services include authentication and charge authorization, the charge detail records, the diagnosis capabilities, the load management, remote software update.
